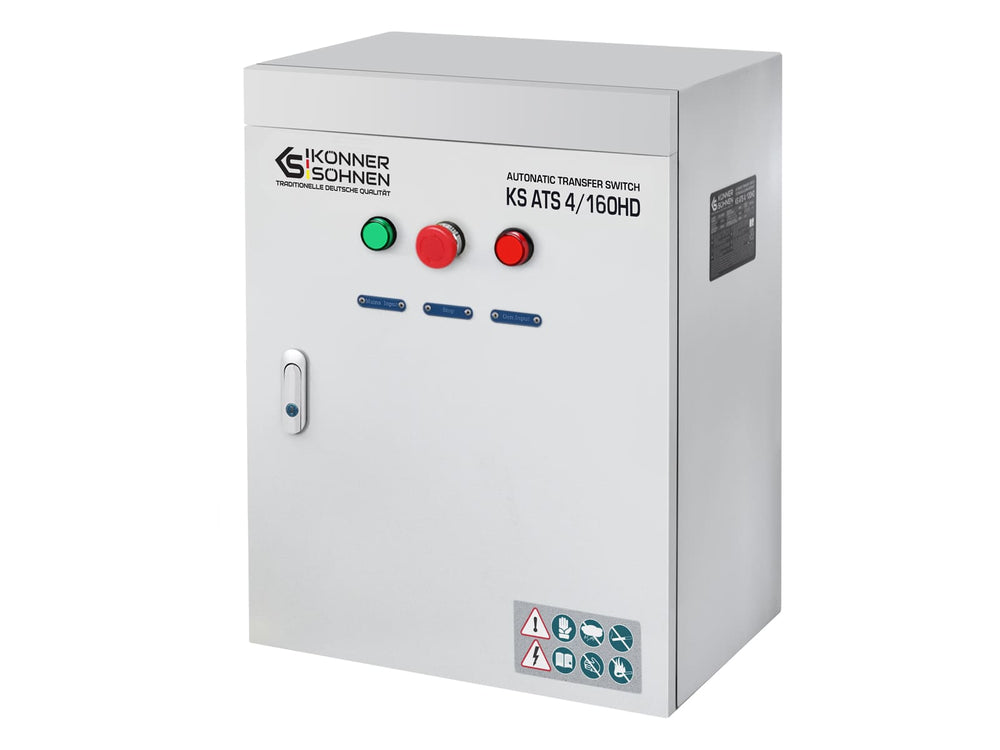

Automatic Transfer Switch KS ATS 4/160HD
Dhs. 3,116.00
Automatic Transfer Switch KS ATS 4/160HD
Dhs. 3,116.00
Automatic Transfer Switch KS ATS 4/160HD
Unavailable
Dhs. 3,116.00
Specification
| Frequency, Hz: | 50 |
| Working environment: | from -20 to + 45 °С; humidity: ⩽50% |
| Voltage, V: | 230/400 |
Specification
| Peak power demand, W | 18 |
| Power (230V), kW | 36.8 |
| Current (max) 230 V, A | 160 |
| Power 400V, kW | 88.5 |
| Current (max) 400 V, A | 160 |
| Working environment | from -20 to + 45 °С; humidity: ⩽50% |
| Storage environment | from -30°C to +70°C; humidity: ⩽50% |
| Insulation class | AC1.0KV/1min 1mA |
| Voltage, V | 230/400 |
| IP protection class | IP44 |
| Net dimensions (LxWxH), mm | 500x300x600 |
| Gross dimensions (LxWxH), mm | 515x315x662 |
| Net weight, kg | 24 |
| Gross weight, kg | 26.0 |
| SKU | KS ATS 4/160HD |
| Barcode | 4260405368259 |
Features
Specification
Automatic Transfer Switch KS ATS 4/160HD
| Peak power demand, W | 18 |
| Power (230V), kW | 36.8 |
| Current (max) 230 V, A | 160 |
| Power 400V, kW | 88.5 |
| Current (max) 400 V, A | 160 |
| Working environment | from -20 to + 45 °С; humidity: ⩽50% |
| Storage environment | from -30°C to +70°C; humidity: ⩽50% |
| Insulation class | AC1.0KV/1min 1mA |
| Voltage, V | 230/400 |
| IP protection class | IP44 |
| Net dimensions (LxWxH), mm | 500x300x600 |
| Gross dimensions (LxWxH), mm | 515x315x662 |
| Net weight, kg | 24 |
| Gross weight, kg | 26.0 |
| SKU | KS ATS 4/160HD |
| Barcode | 4260405368259 |
Instructions
Könner & Söhnen Energy
Download instruction PDF: Könner & Söhnen Energy
