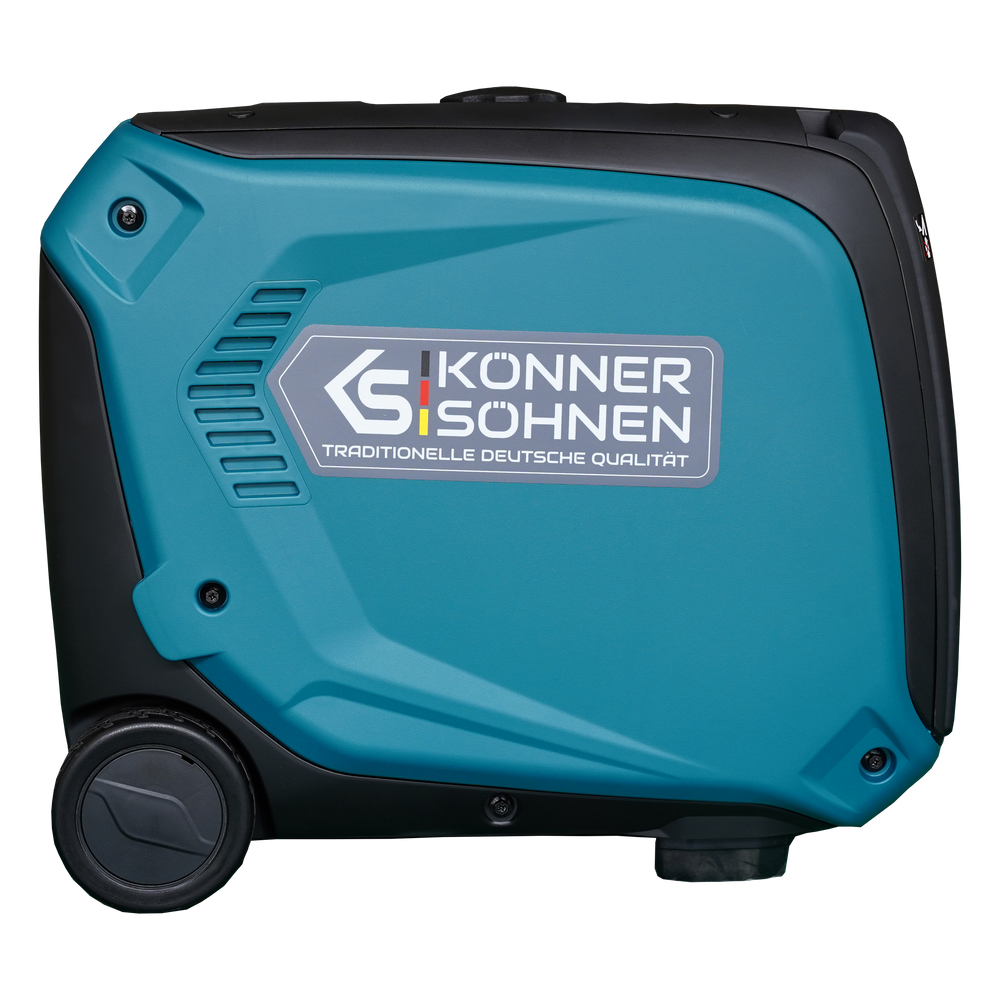

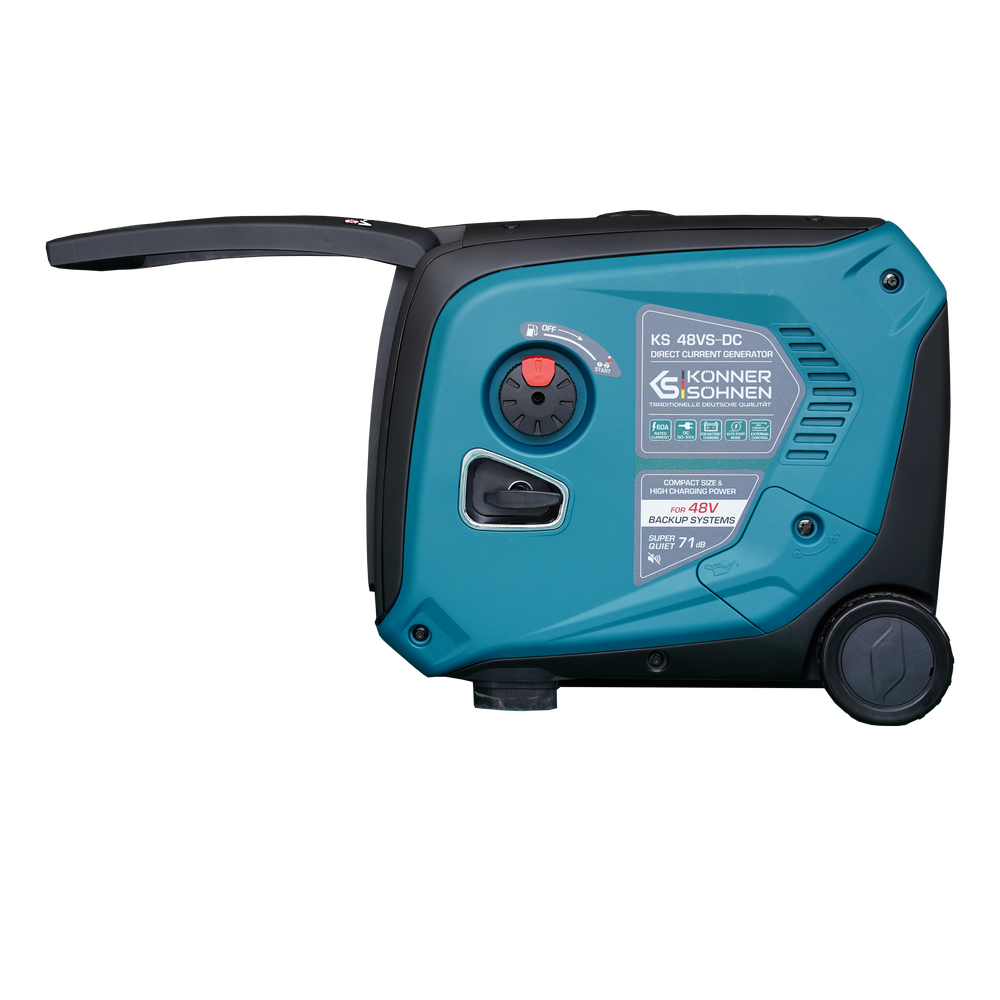

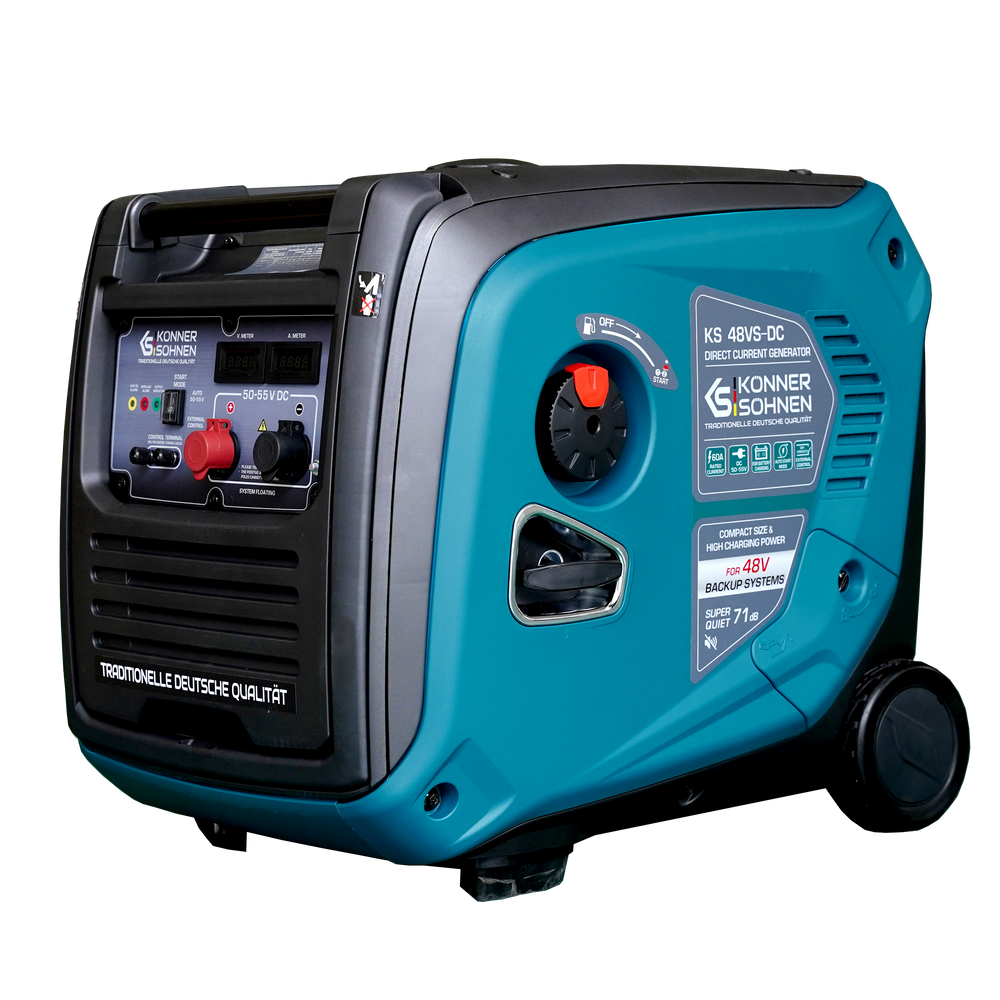

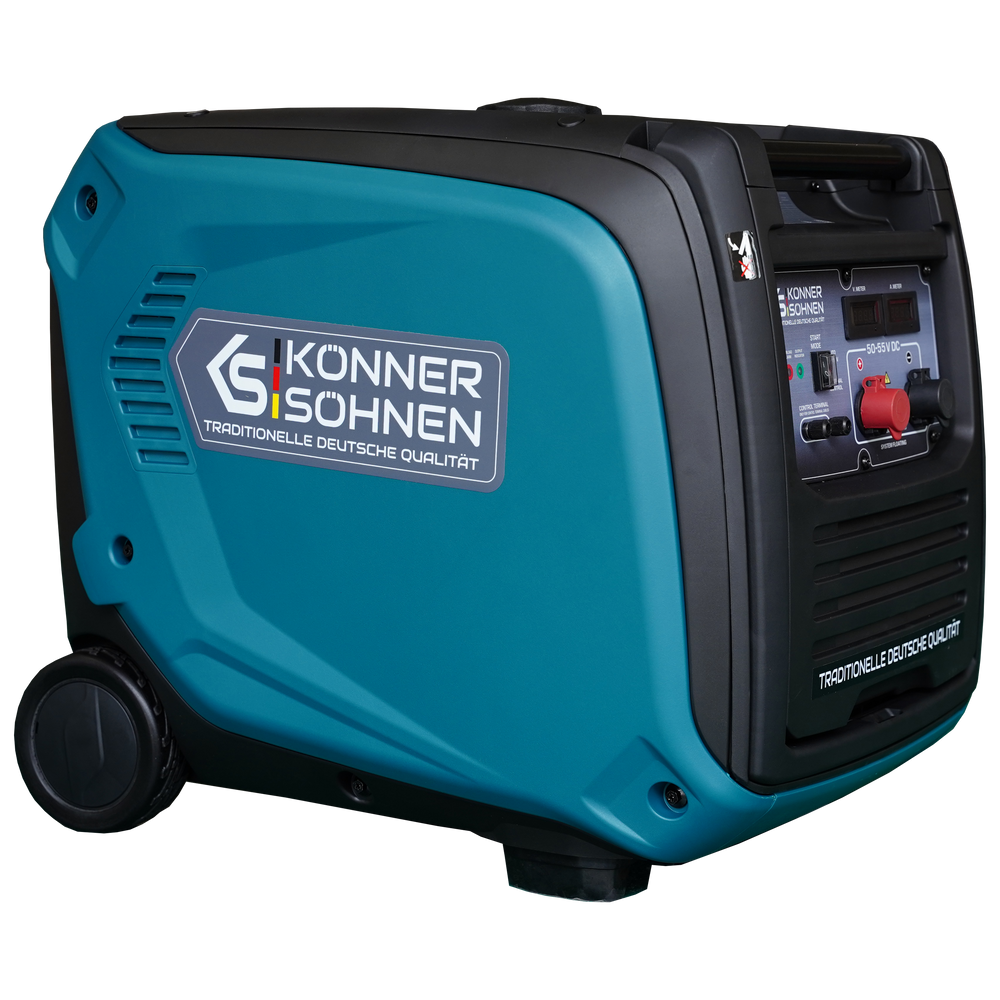

KS 48VS-DC Direct Current Generator, version 50–55V

KS 48VS-DC Direct Current Generator, version 50–55V

Name: KS 48VS-DC Direct Current Generator, version 50–55V
Brand: Könner & Söhnen
SKU: 4260405365845
Price: 6774.0 AED
Availability: OutOfStock

Unavailable

Dhs. 6,774.00

Specification

Voltage, V:	50-55
Nominal power, kW:	3.3
Engine start:	auto / external control

Benefits

Backup charging device – designed for battery-based power systems with an operating voltage range including 50–55V.
Automatic operation – in AUTO mode, the generator independently monitors the battery voltage, starts when it drops below 50V, and stops when the output reaches 54.5 ± 0.5 V and the current drops below 20A.
EXTERNAL CONTROL mode – generator starts/stops via CONTROL TERMINAL contacts, regardless of battery voltage or output current.
Soundproof housing – significantly reduces the noise level during operation and thus reduces ambient noise pollution.
Transport kit – the generator is equipped with a foldable handle and wheels for convenient transport, significantly expanding its application possibilities.

Features

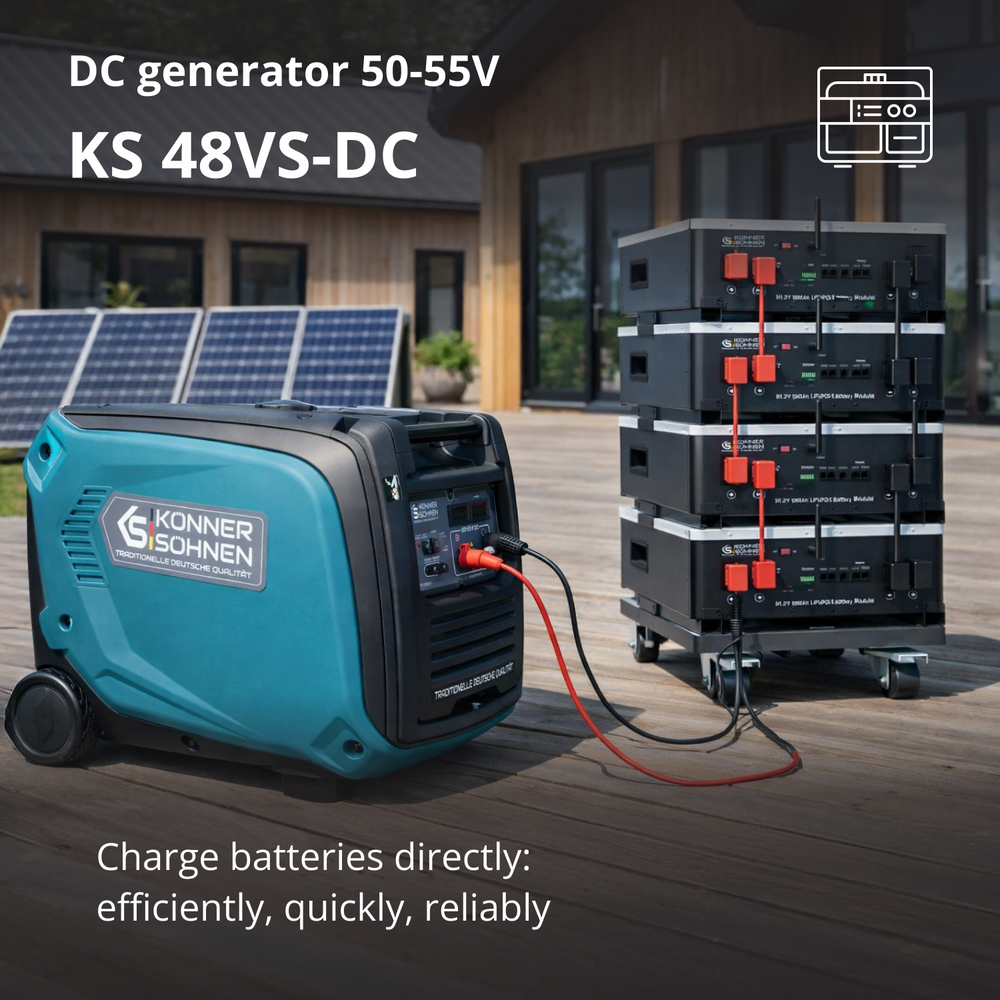

The KS48VS-DC DC generator in a soundproof design, 50–55V version, from Könner & Söhnen is designed for charging batteries in the 50–55V range, particularly LiFePO₄ batteries with a nominal voltage of 51.2V, as well as other types that allow a charging voltage of up to 55V. It is ideal for 48V-based energy systems such as solar, wind, and telecommunications systems. It operates in AUTO and EXTERNAL CONTROL modes and supports control via dry contacts. Equipped with short-circuit, overload, and overvoltage protection, it starts from the battery being charged. It features wheels, a handle, a EURO5 motor, and an alternator with copper windings.

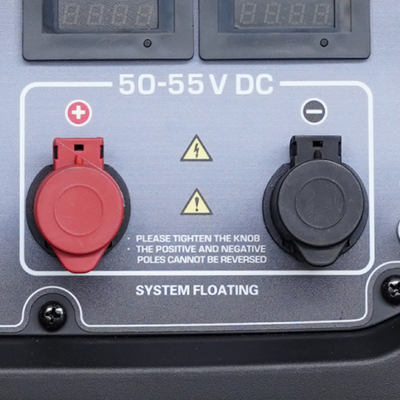

Backup battery charger

designed for power systems with battery storages with operating voltage range of 50–55 V

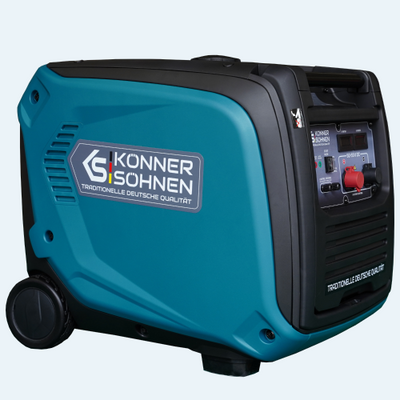

Soundproof housing

significantly reduces the noise level during operation and thus reduces ambient noise pollution

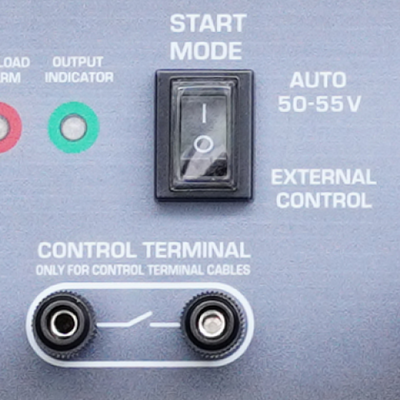

AUTO and EXTERNAL CONTROL modes

AUTO: The generator automatically monitors the battery voltage; EXTERNAL CONTROL: The generator starts and stops by closing and opening the CONTROL TERMINAL contacts

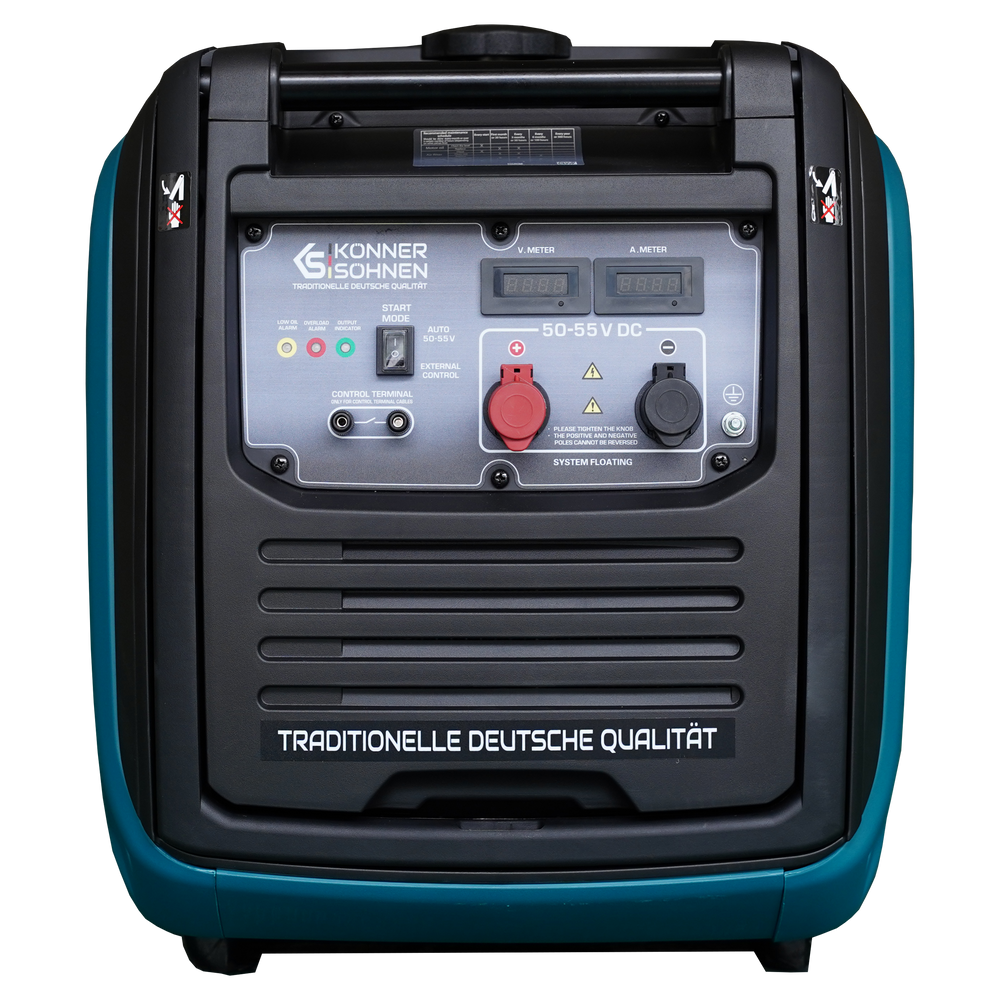

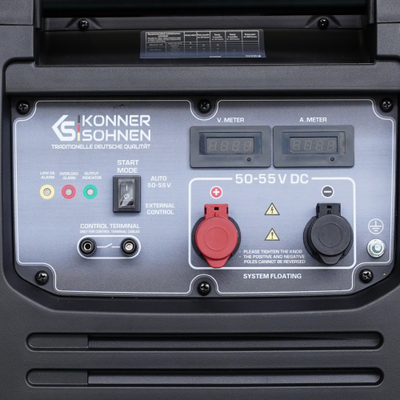

User-friendly control panel

ergonomically designed, with all necessary displays and controls for easy operation. The mode switch allows for quick adjustment to user requirements, and clearly labeled elements ensure intuitive use

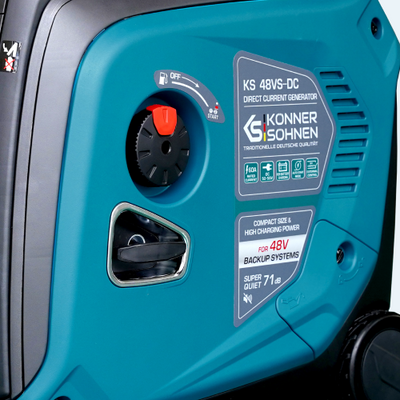

Powerful and economical engine

equipped with a modern engine that complies with the EURO V standard. Thanks to an optimized combustion system, it offers high performance with minimal fuel consumption. This makes the unit efficient, economical, and durable

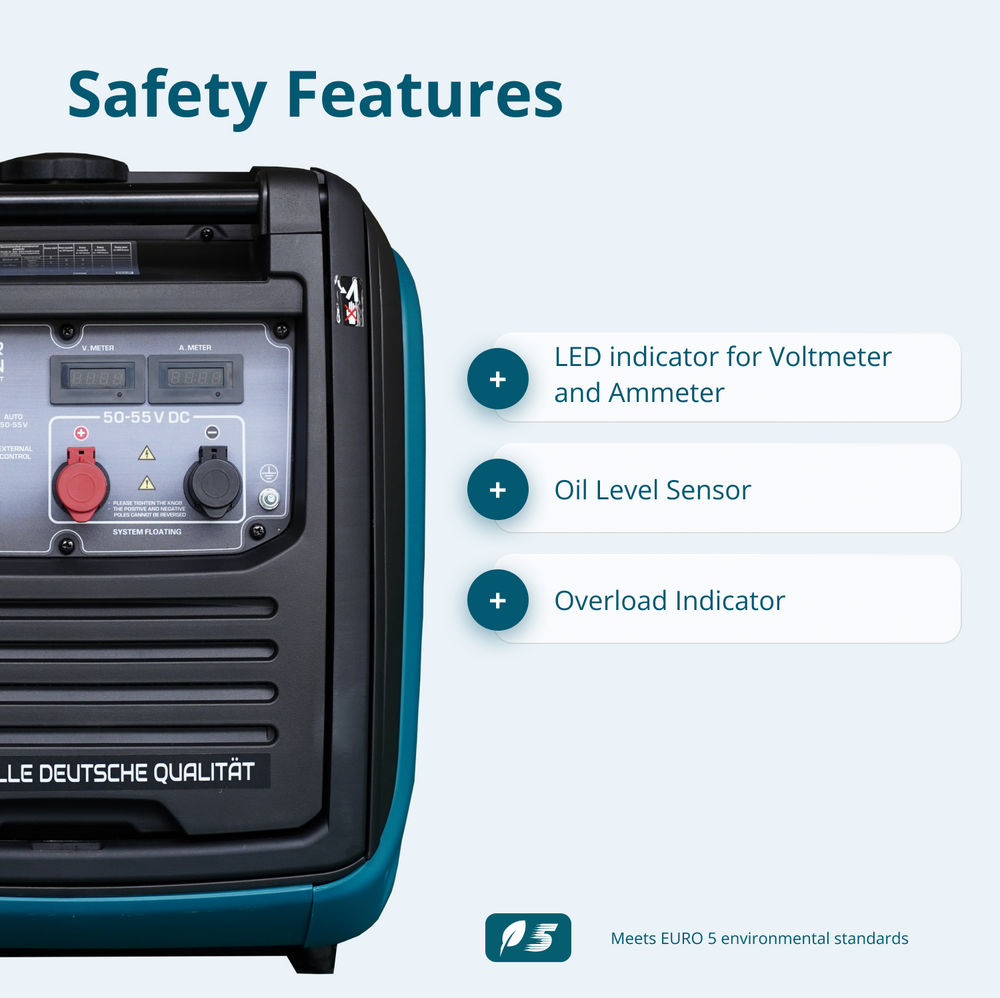

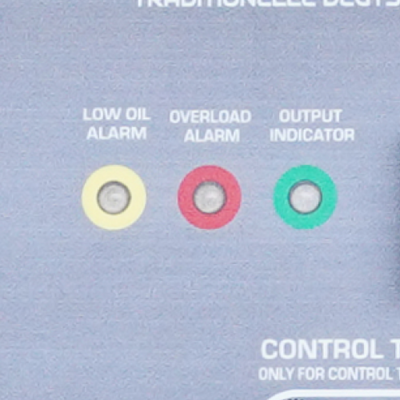

Monitoring of all important operating parameters

automatic shutdown when the oil level is low, protection against reverse polarity and short circuits, and a fuel level sensor

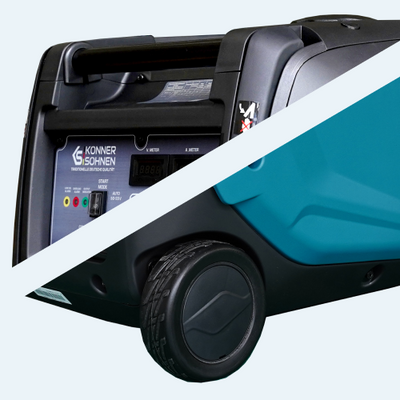

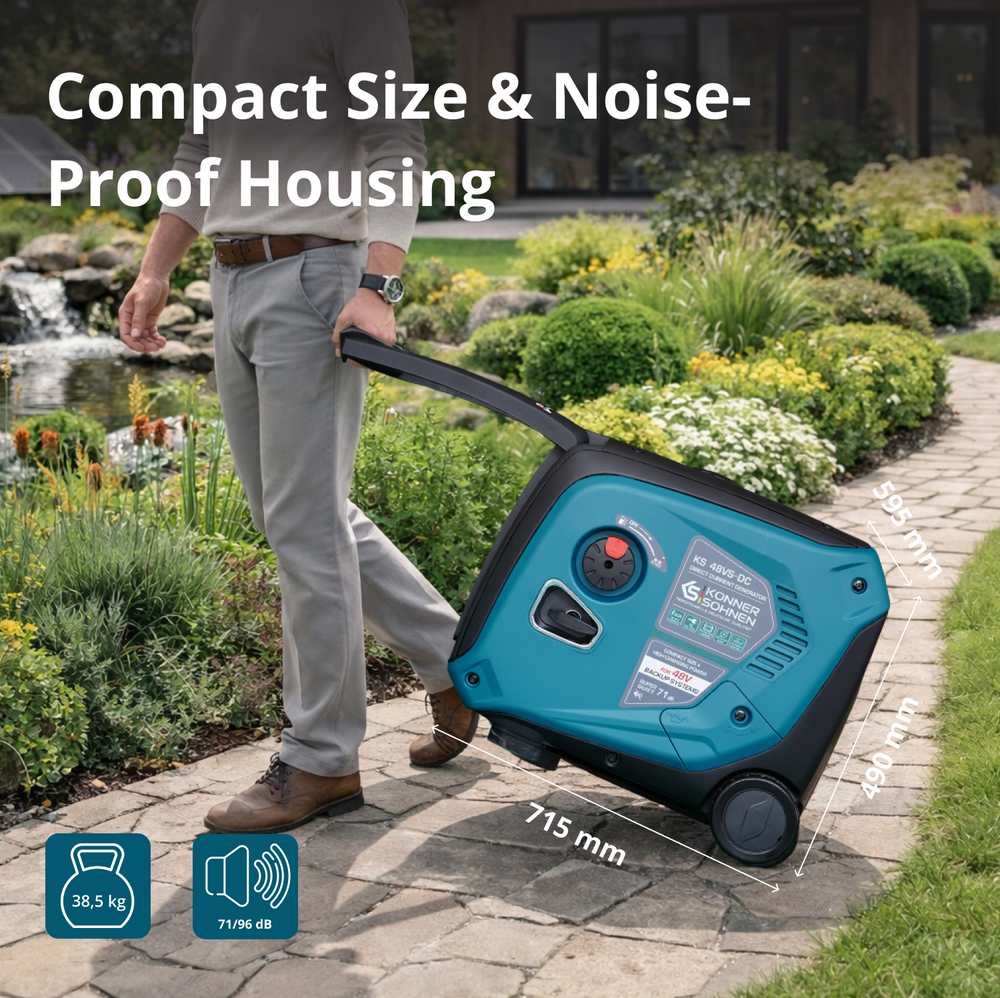

Transport kit (folding handle and wheels)

facilitates transport of the generator and thus significantly expands its application possibilities.

Benefits

High power (up to 3.3 kW)

generates a charging current of up to 60 A at a voltage of up to 55 V.

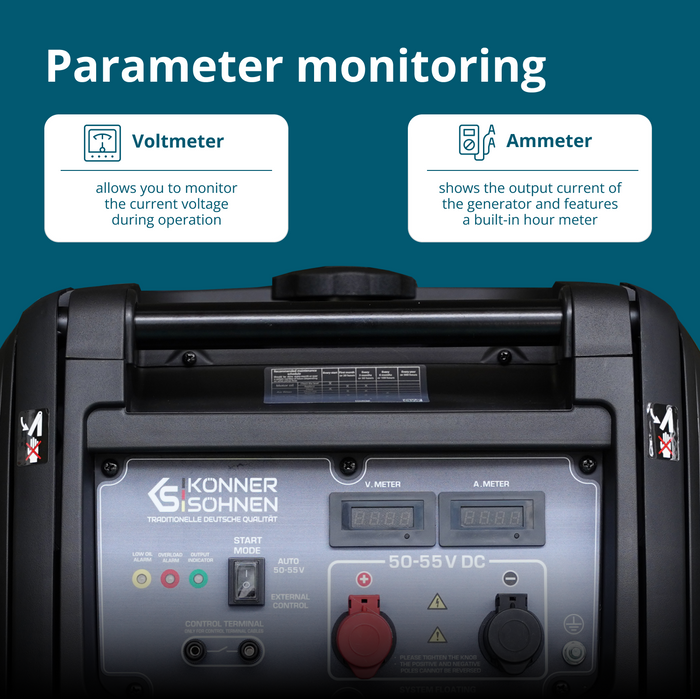

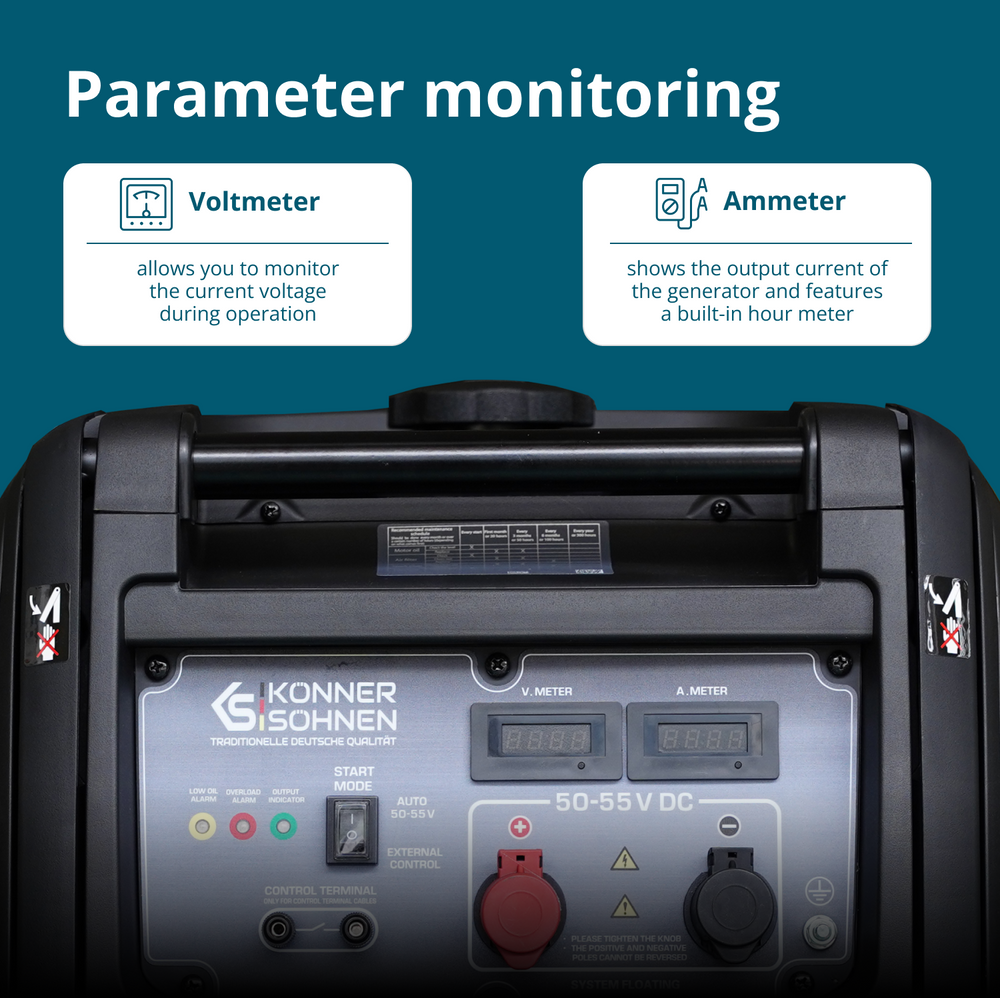

Parameter control

Thanks to the integrated measuring devices (voltmeter and ammeter), you can monitor the generator's output parameters and the voltage of the connected battery.

Ease of use

The ability to choose between AUTOMATIC and EXTERNAL CONTROL modes allows you to adapt the generator to different usage scenarios, ensuring autonomy in the event of a power outage.

Engine protection

Thanks to the low-oil sensor, the engine stops if the oil level is too low, thus protecting it from serious damage. The generator's ammeter is equipped with an hour meter to ensure timely maintenance.

Operational safety

The generator is equipped with a control system that protects it against overloads, short circuits, and excessive battery voltage.

Efficiency and durability

The 4-stroke engine complies with the EURO V standard and ensures optimal fuel consumption, as well as the longevity of the generator and stable operation under various operating conditions.

Specification

KS 48VS-DC Direct Current Generator, version 50–55V

Voltage, V	50-55
Nominal power, kW	3.3
Current (max), A	60
Fuel tank volume, l	12
LED display	output voltage, charging current
Noise level Lpa (7m)/Lwa, dB	71/96
Engine model	KS 240i
Engine type	four-stroke, gasoline powered
Engine power, hp	7.5
Crank case volume, l	0.6
Engine cylinder volume, cm3	223
Engine start	auto / external control
Protection class	IP23M
Includes	Generator, User manual, Key candle, Screwdriver РН2 6,0 mm, Case for accessories, Oil filling funnel, Spare fuse, Bridge (cable) for control contacts, 2×Power cable 48V
Gross dimensions (LxWxH), mm	715×490×595
Net weight, kg	38.5
Gross weight, kg	45.0
SKU	KS 48VS-DC
Barcode	4260405365845

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
