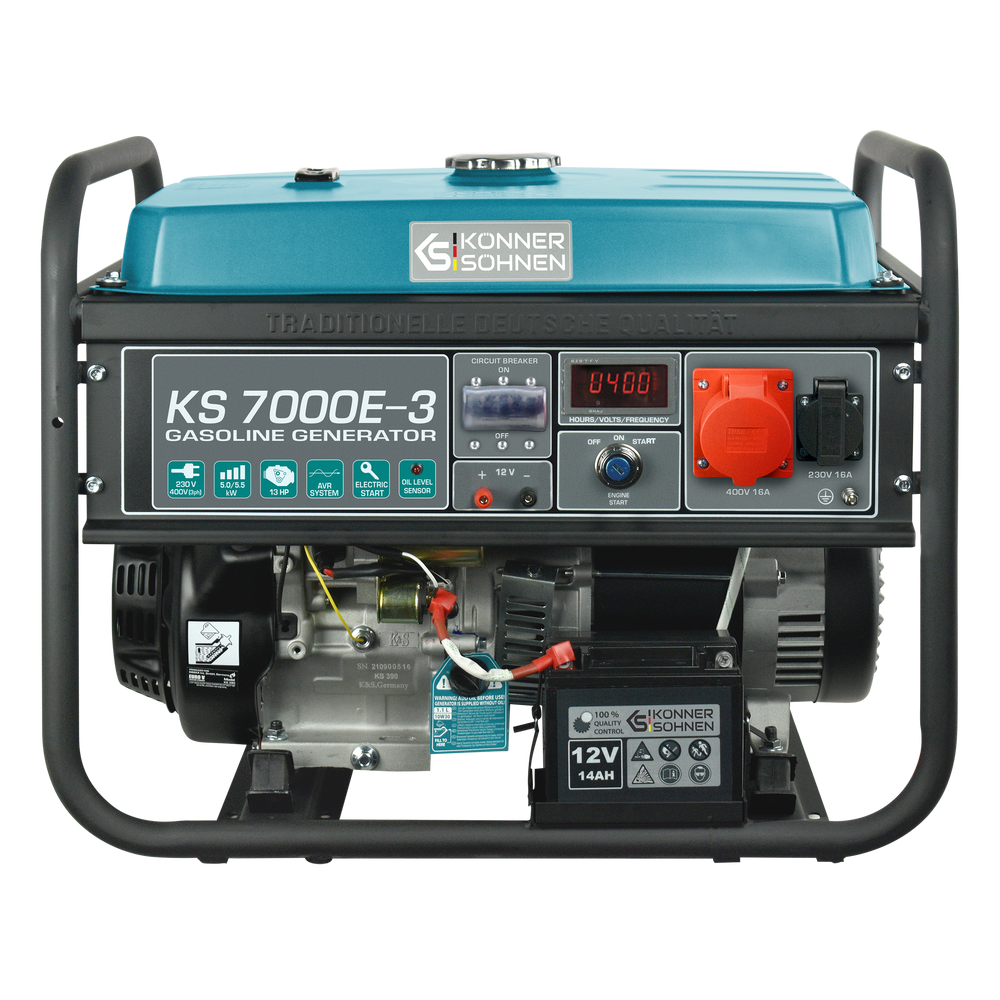

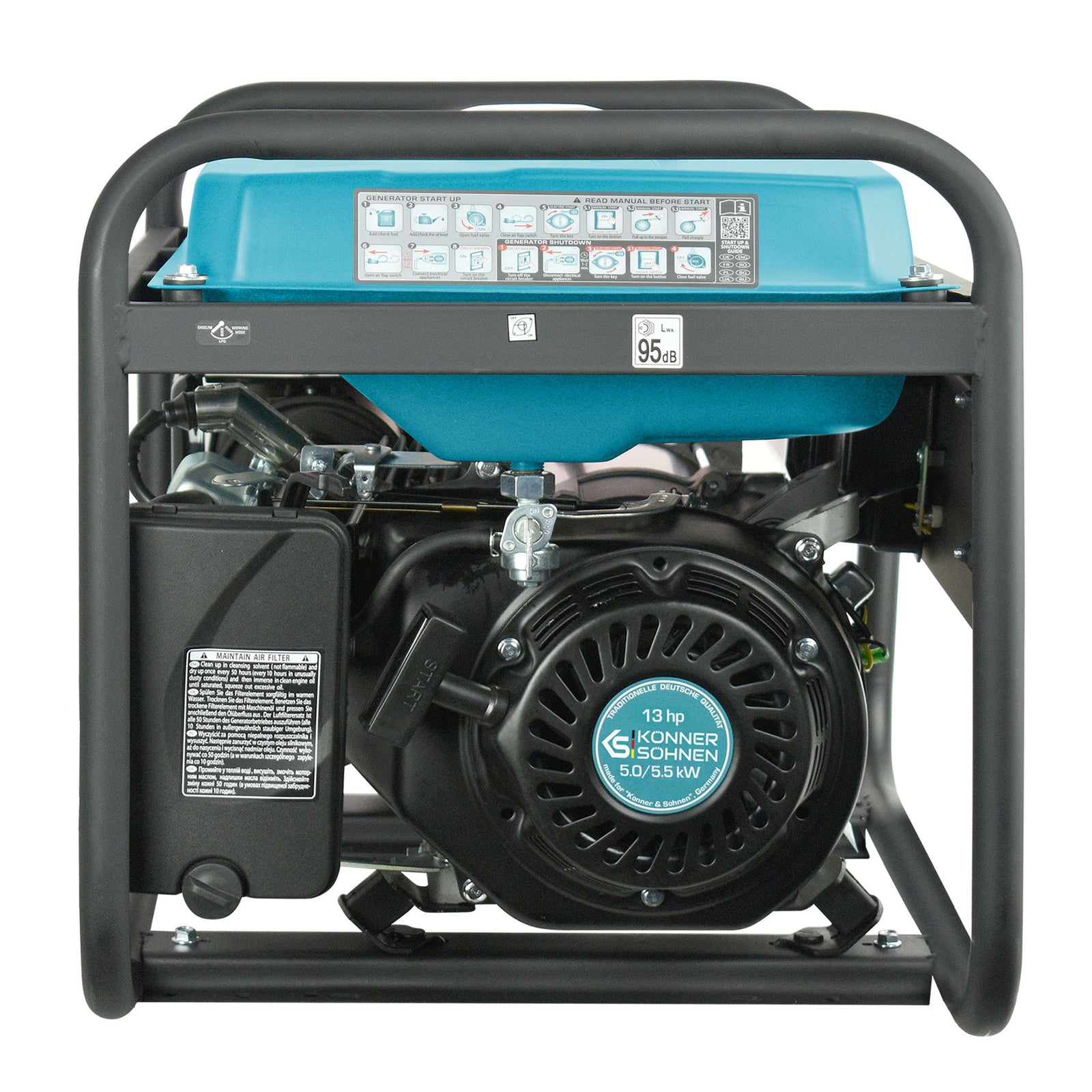

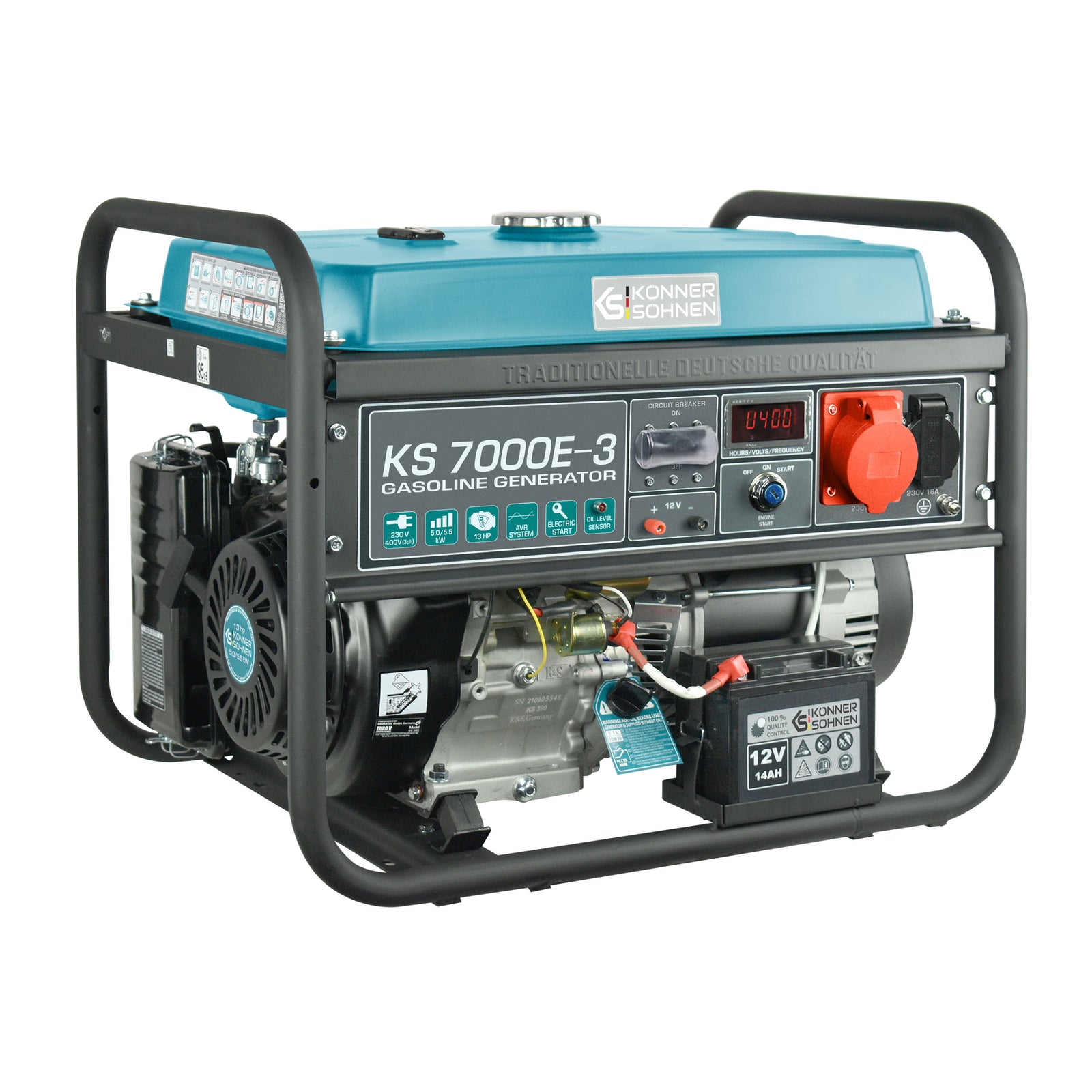

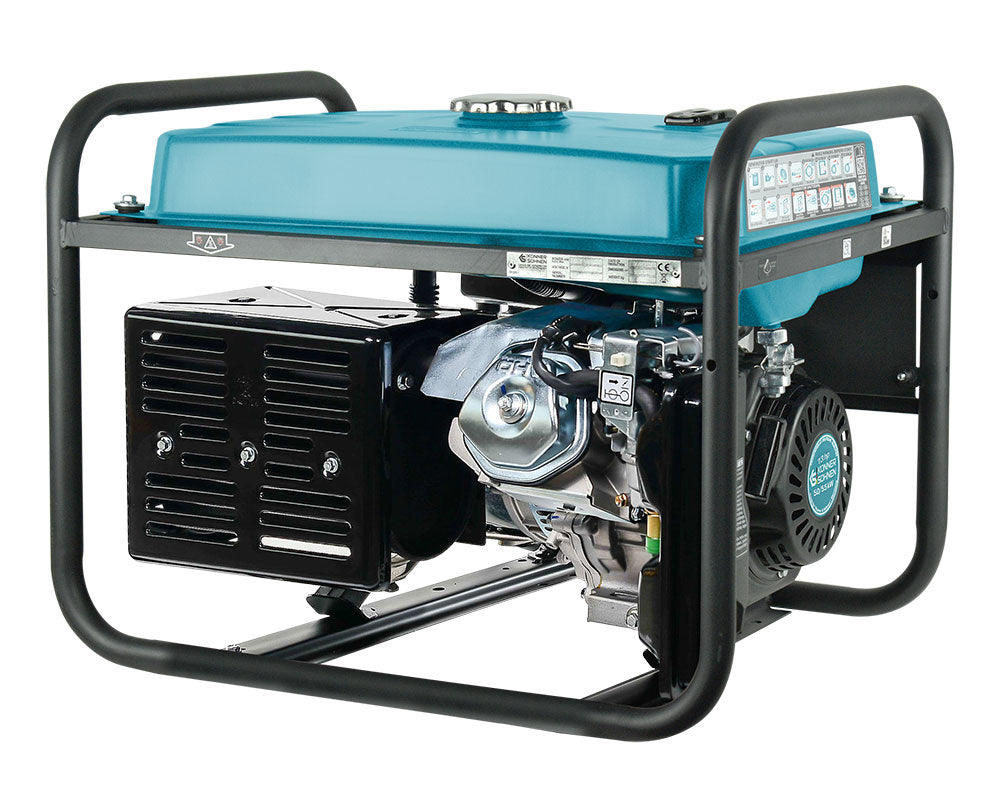

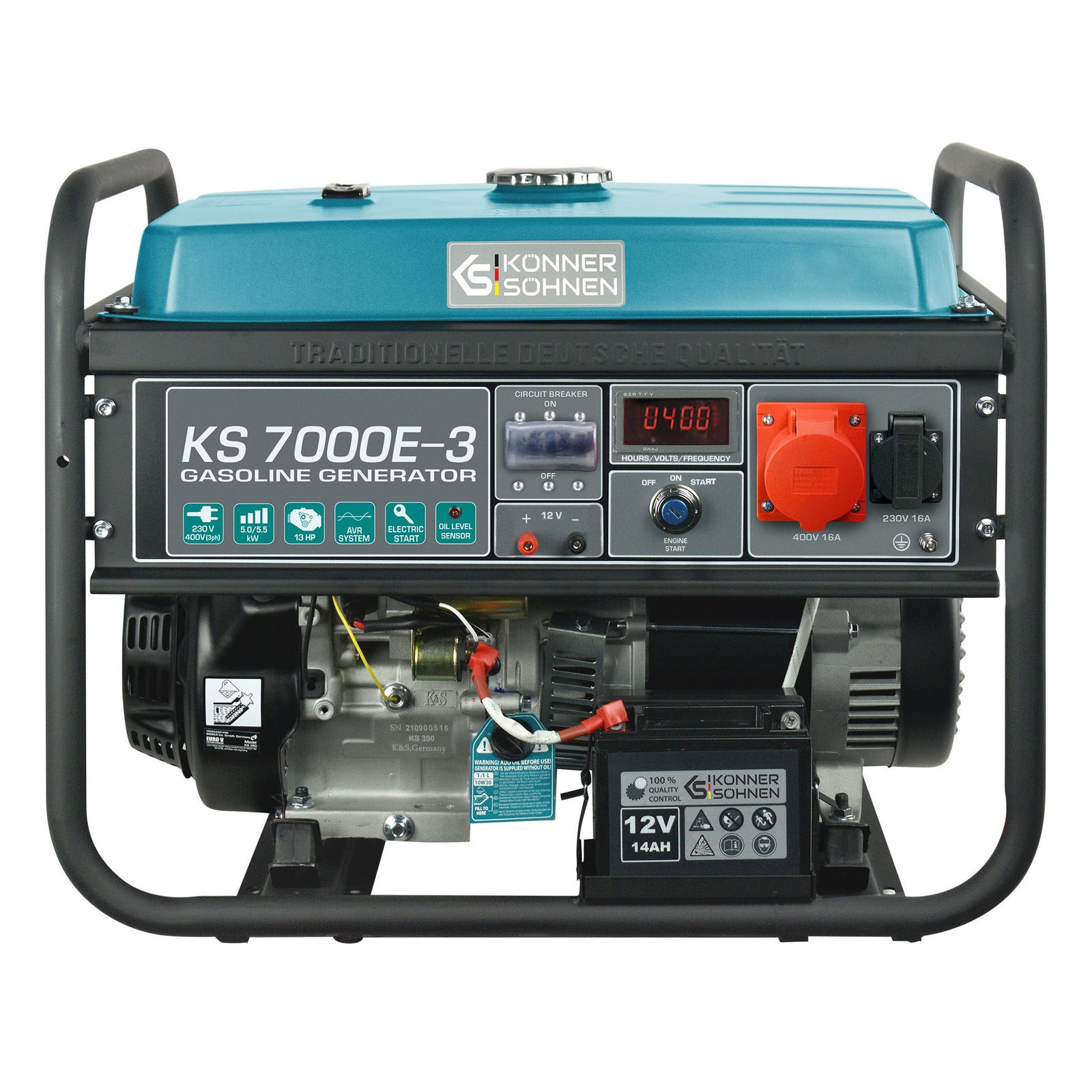

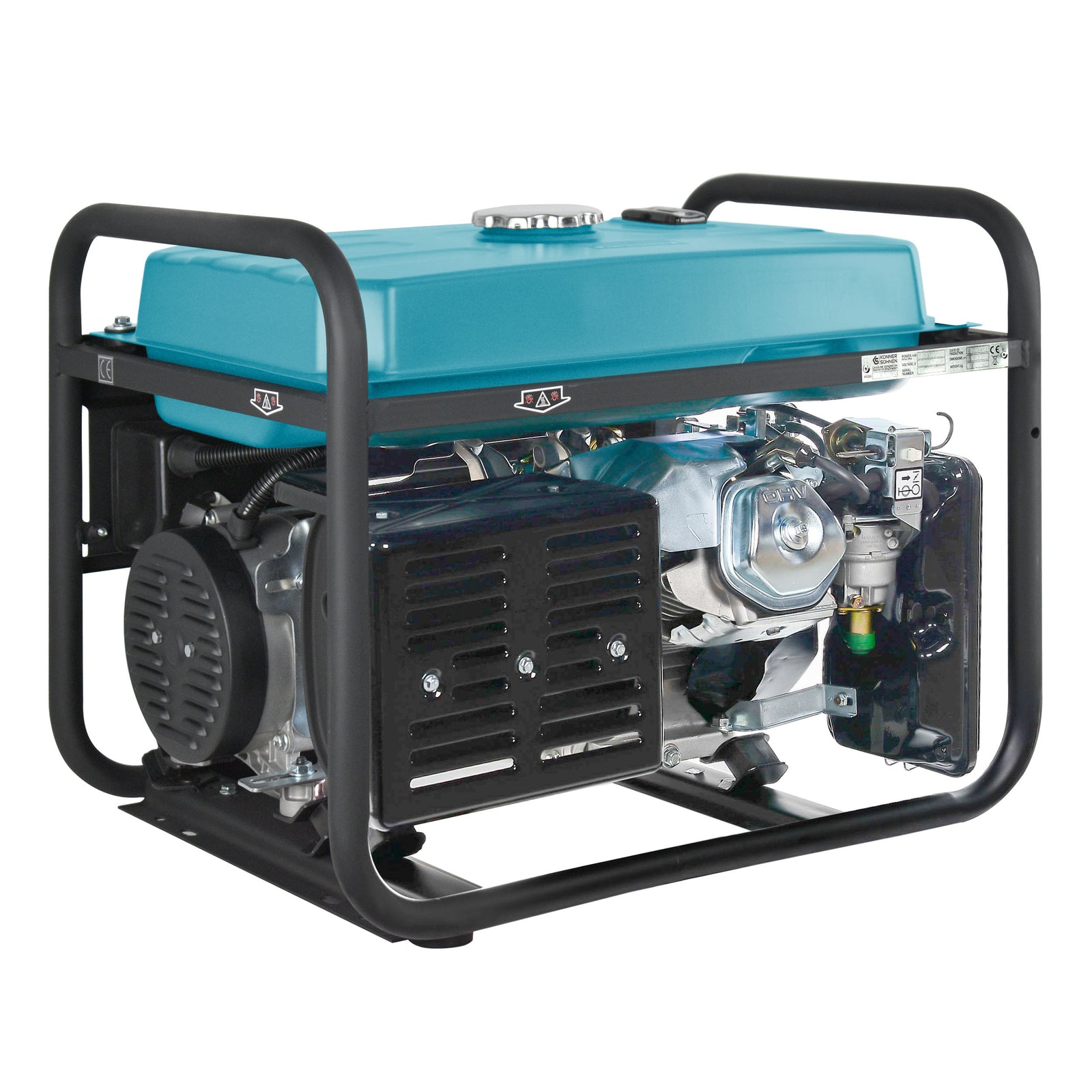

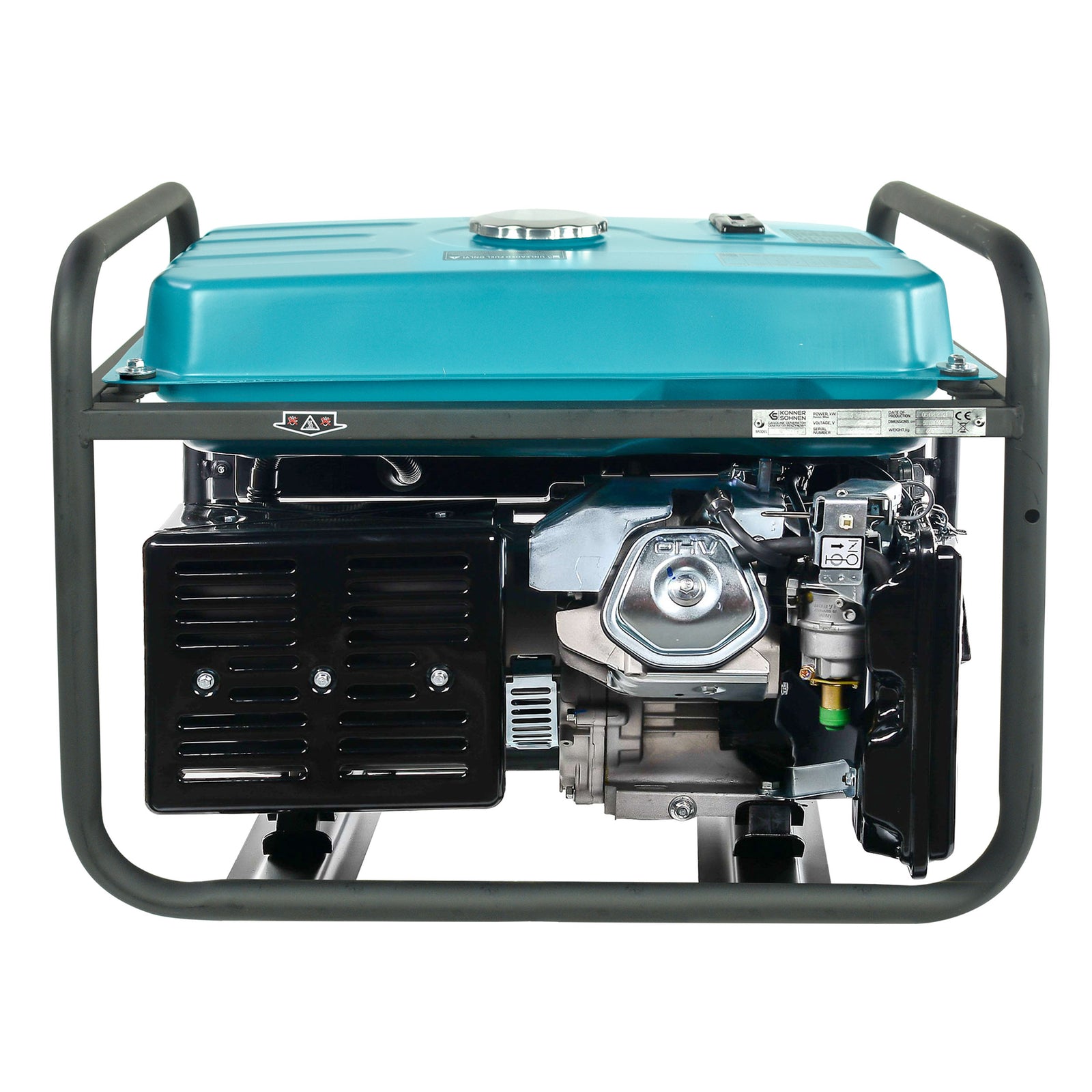

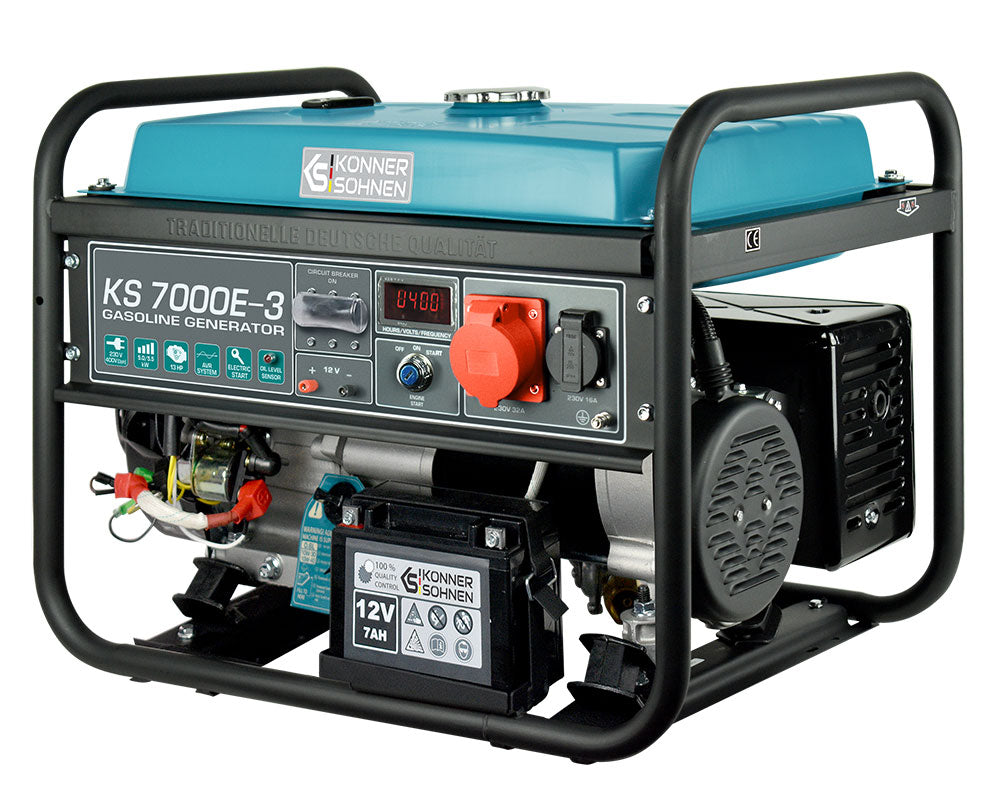

Gasoline generator "Könner & Söhnen" KS 7000E-3
Dhs. 5,177.00
Gasoline generator "Könner & Söhnen" KS 7000E-3
Dhs. 5,177.00
Gasoline generator "Könner & Söhnen" KS 7000E-3
Unavailable
Dhs. 5,177.00
Specification
| Voltage, V: | 400 |
| Max power, kW: | 5.5 |
| Nominal power, kW: | 5.0 |
| Engine start: | Manual/electric |
| Outlets: | 1 x Schuko 230 V, 1 x CEE 400 V 16 A |
Specification
| Voltage, V | 400 |
| Max power, kW | 5.5 |
| Nominal power, kW | 5.0 |
| Power factor, cosφ | 0.8 |
| Frequency, Hz | 50** |
| Current (max), A | 9.93 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 400 V 16 A |
| Fuel tank volume, l | 25 |
| Runtime at 50% load, h*** | 17 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 70/95 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 390 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 13.0/9.56 |
| Fuel type | Gasoline |
| Crank case volume, l | 1.1 |
| Engine cylinder volume, cm3 | 389 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 680x545x550 |
| Gross dimensions (LxWxH), mm | 700x545x590 |
| Net weight, kg | 80.8 |
| Gross weight, kg | 83.2 |
| SKU | KS 7000E-3 |
| Barcode | 4260405361151 |
Benefits
Features
01
Könner & söhnen engines
02
Individual serial numbers on engines
03
Convenient ergonomic control panel with electic start
04
230v or 400v
05
Alternator with 100% copper winding
06
Easy start system
07
Steel tank
08
Dampers to lower vibration
09
Optional KS 7 KIT
Könner & söhnen engines
Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable. High-performance K&S engines comply with the latest EURO V emission standards.
Individual serial numbers on engines
Könner & Söhnen engines meet all world and European standards of quality, including the harmful emissions level and noise level. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service. Könner & Söhnen motors have easy start and low vibration.

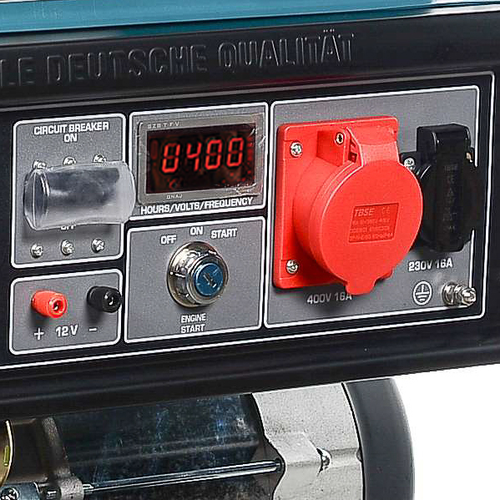

Convenient ergonomic control panel with electic start
Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

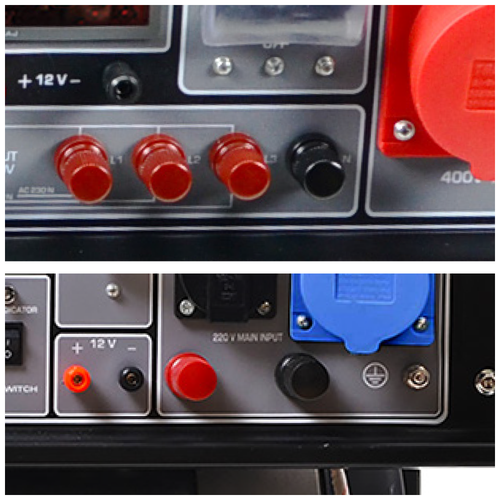

230v or 400v
The presented series includes models for single- and three-phase consumers. The generator control panel with the ATS function has corresponding 230V and 400V mains terminals.
Alternator with 100% copper winding
TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.
Easy start system
Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have two types of startup - manual and electric. More powerful models are additionally equipped with an electric start system.
Steel tank
“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.
Dampers to lower vibration
All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.
Optional KS 7 KIT
The transport kit KS 7 KIT includes 2 wheels, 2 support legs, a mounting kit and 2 handles.
Double Anti-Vibration System
To ensure noise reduction and extend the service life of the generator
Circuit Breaker
Оverload and short circuit protection
Low Oil Level Indicator
Enables oil level monitoring without requiring manual inspection
Electric Start
Easy and convenient start system
Outlets
1 x Schuko 230 V, 1 x CEE 400 V 16 A
LED Display
Hour meter, frequency, voltage
Double Anti-Vibration System
To ensure noise reduction and extend the service life of the generator
Circuit Breaker
Оverload and short circuit protection
Low Oil Level Indicator
Enables oil level monitoring without requiring manual inspection
Electric Start
Easy and convenient start system
Outlets
1 x Schuko 230 V, 1 x CEE 400 V 16 A
LED Display
Hour meter, frequency, voltage
Specification
Gasoline generator "Könner & Söhnen" KS 7000E-3
| Voltage, V | 400 |
| Max power, kW | 5.5 |
| Nominal power, kW | 5.0 |
| Power factor, cosφ | 0.8 |
| Frequency, Hz | 50** |
| Current (max), A | 9.93 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 400 V 16 A |
| Fuel tank volume, l | 25 |
| Runtime at 50% load, h*** | 17 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 70/95 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 390 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 13.0/9.56 |
| Fuel type | Gasoline |
| Crank case volume, l | 1.1 |
| Engine cylinder volume, cm3 | 389 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 680x545x550 |
| Gross dimensions (LxWxH), mm | 700x545x590 |
| Net weight, kg | 80.8 |
| Gross weight, kg | 83.2 |
| SKU | KS 7000E-3 |
| Barcode | 4260405361151 |
