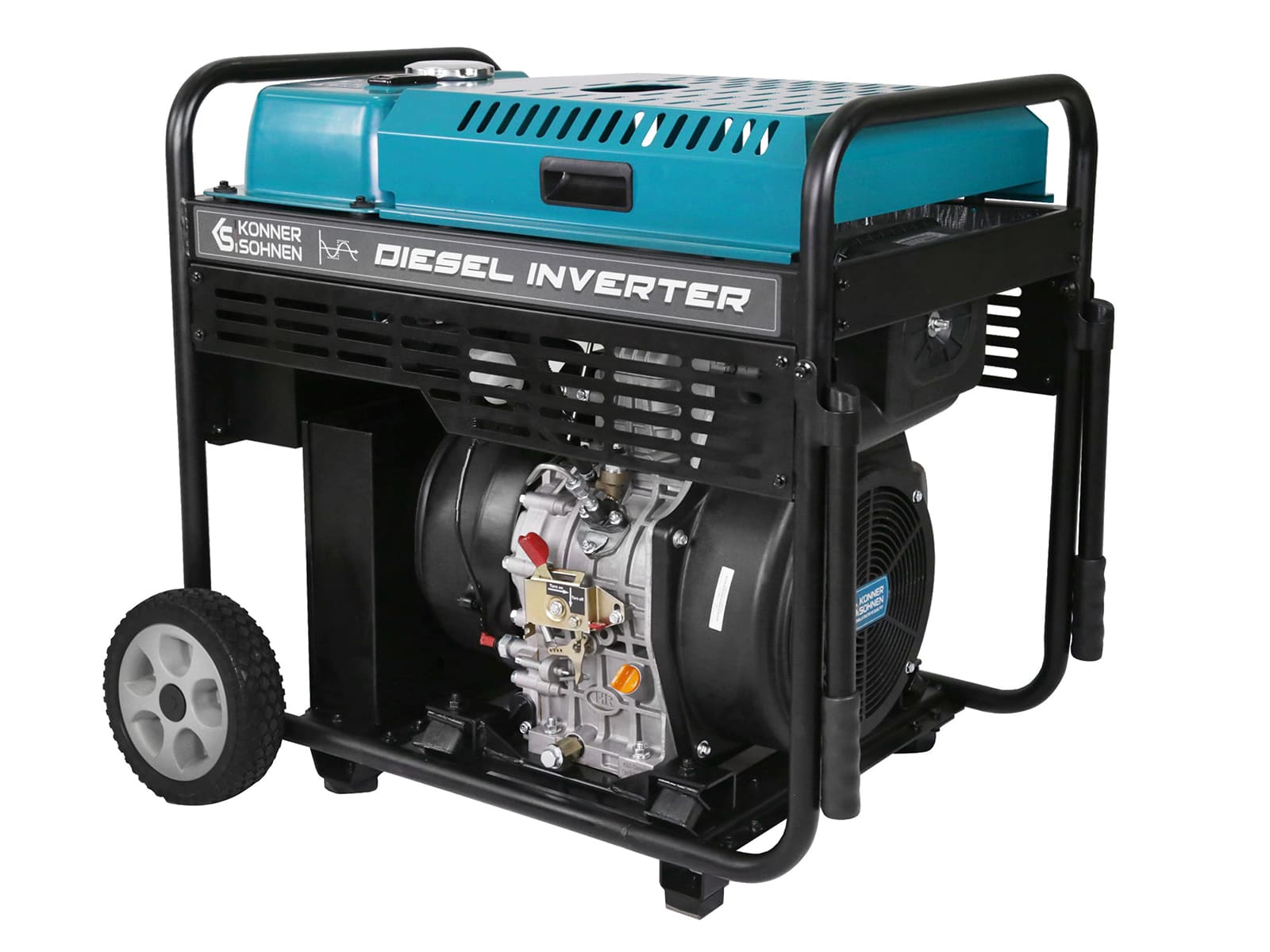

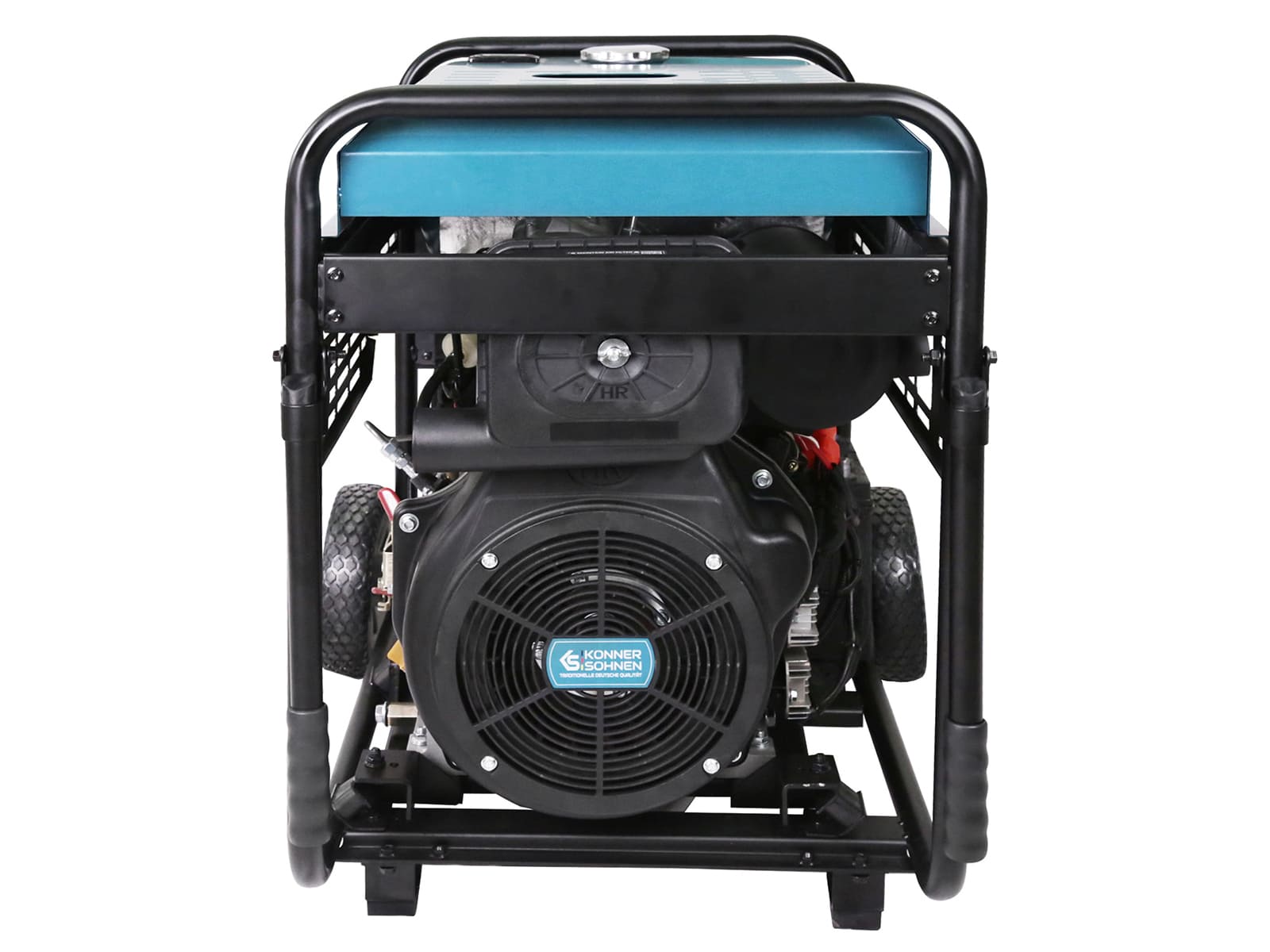

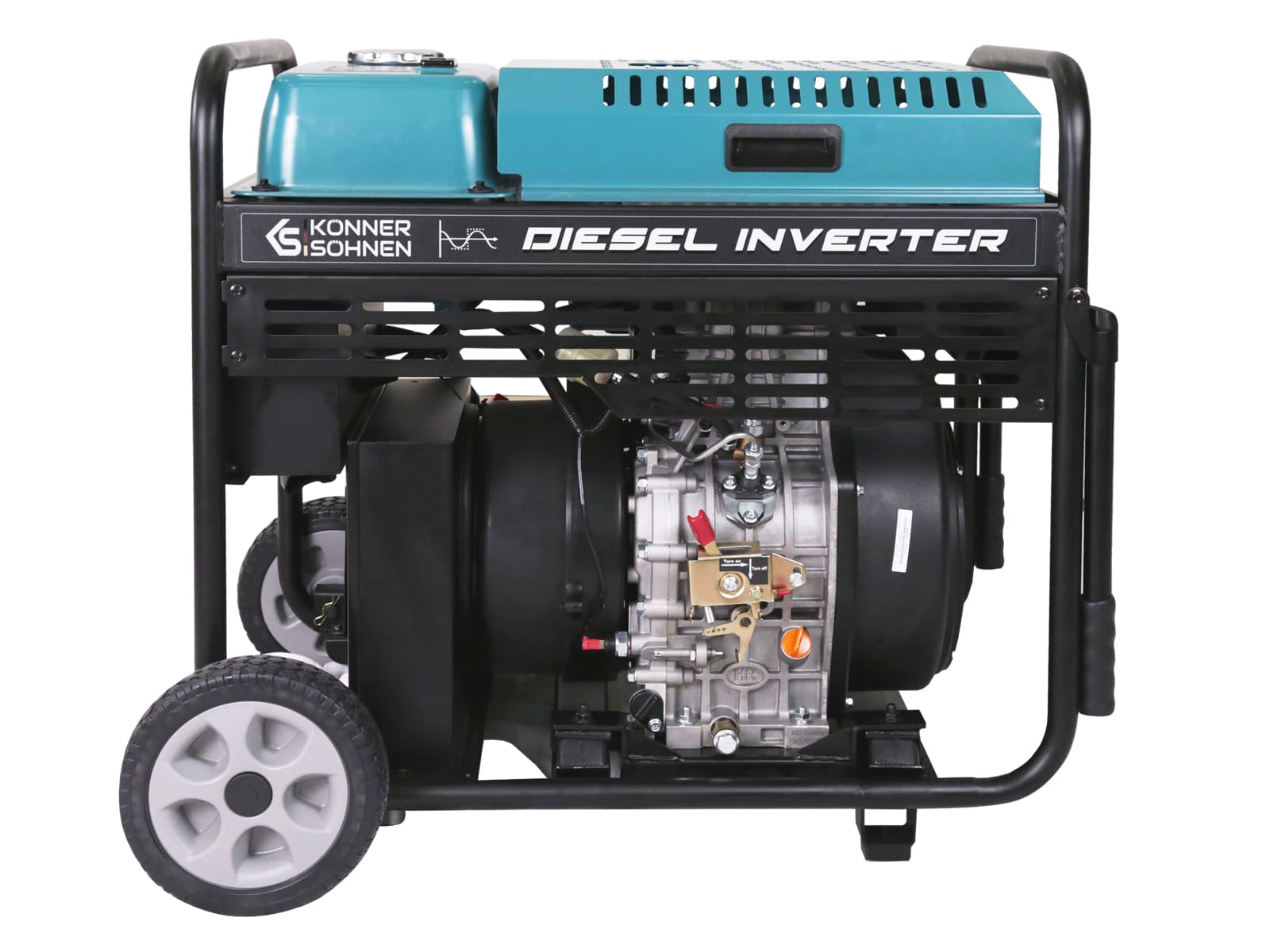

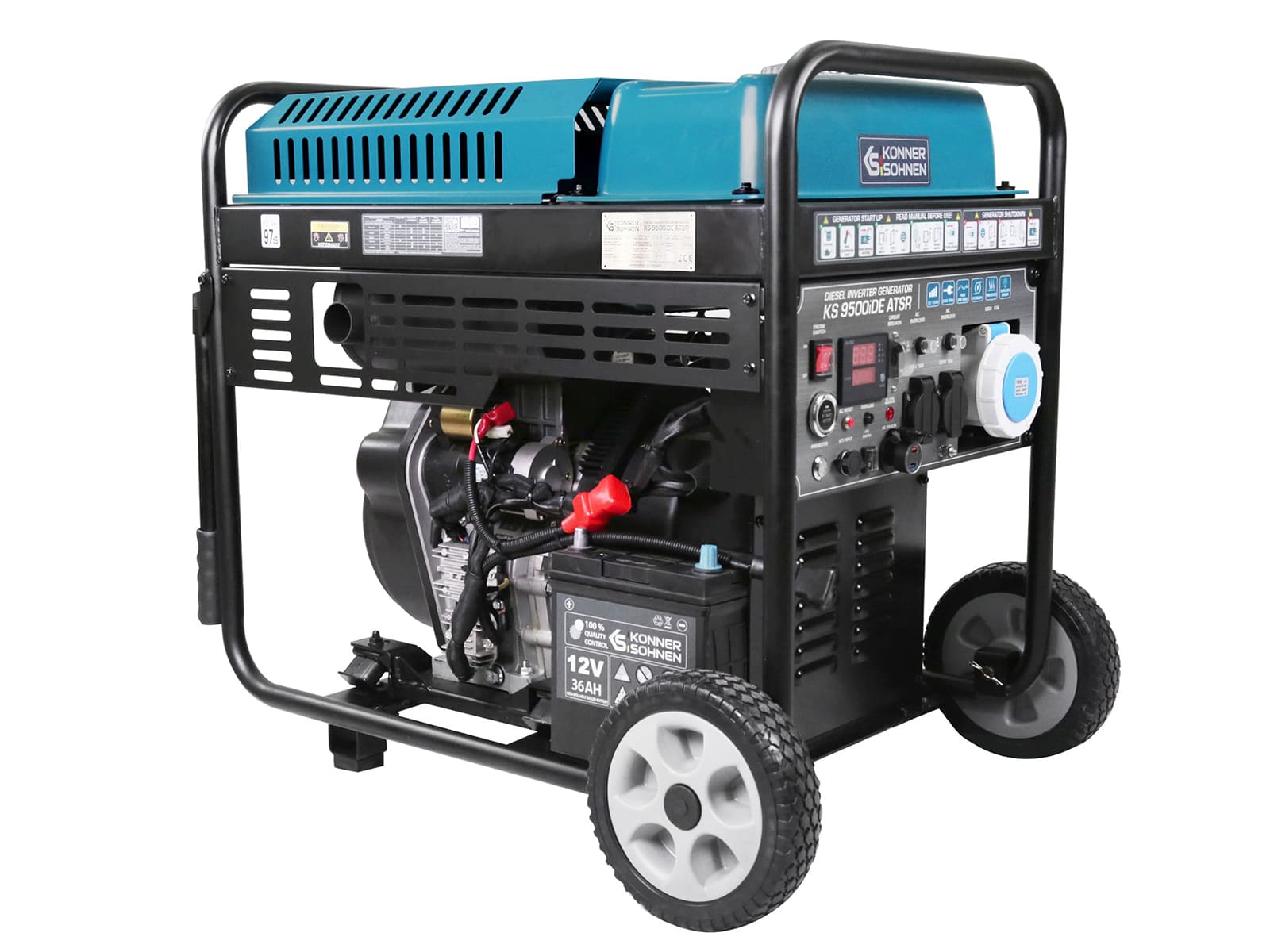

Diesel inverter generator KS 9500iDЕ ATSR
Dhs. 18,838.00
Diesel inverter generator KS 9500iDЕ ATSR
Dhs. 18,838.00
Diesel inverter generator KS 9500iDЕ ATSR
Unavailable
Dhs. 18,838.00
Specification
| Frequency, Hz: | 50 |
| Max/Nominal power (230V), kW: | 10.0/9.5 |
| Fuel tank volume, l: | 18 |
| Runtime at 50% load, h***: | 14 |
Specification
| Voltage, V | 230 |
| Max/Nominal power (230V), kW | 10.0/9.5 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50 |
| Current (max), A | 43.5 |
| Outlets | 2 x Schuko 230 V, 1 x CEE 230 V 63 A |
| Runtime at 50% load, h*** | 14 |
| LED display | multifunctional: voltage, frequency, current, power output, hours counter |
| Noise level Lpa (7m)/Lwa, dB | 72/97 |
| Power output DC, V/А | 8.3A |
| Engine type | 1-cylinder diesel, 4-stroke, air-cooled |
| Engine model | KS 790iD |
| Engine power, hp/kW | 17.7/13 |
| Preheater | + |
| Fuel tank volume, l | 18 |
| Crank case volume, l | 1.8 |
| Engine cylinder volume, cm3 | 762 |
| Engine start | Electric |
| Frame diameter | 28 mm, round |
| Accumulator (A·h) | 36 |
| Output for ATS | + |
| Includes | Generator, Packaging, Manual, 2×16A Plugs, 63A Plug, Wheels, Wheel axles, Locking clamps, Washers, Handle, Anti-vibration feet, 12V Adapter to USB, Remote control |
| Net dimensions (LxWxH), mm | 770×542×722 |
| Gross dimensions (LxWxH), mm | 820×555×745 |
| Net weight, kg | 130 |
| Gross weight, kg | 137.0 |
| SKU | KS 9500IDE ATSR |
| Barcode | 4260405367474 |
Features
01
Pure sine wave
02
RELIABLE ENGINE
03
ERGONOMICAL CONTROL PANEL
04
REMOTE CONTROL
05
Pre-heating
06
CAPABILITY TO CONNECT ATS
07
18 LITER FUEL TANK
08
12V adapter with USB output
09
TRANSPORTATION KIT
10
PACKAGE INCLUDES

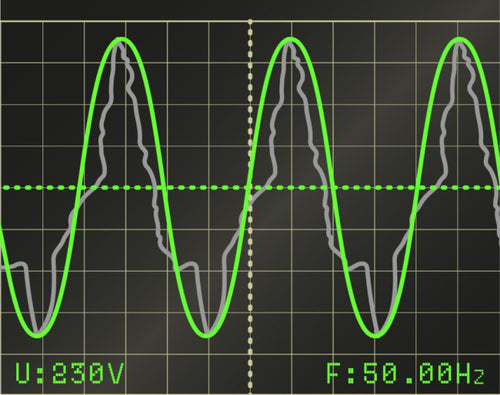

Pure sine wave
Produces a stable output voltage of 230V, 50Hz in sine wave form, suitable for reliable operation of sensitive electronics such as computers, printers, medical equipment, etc.

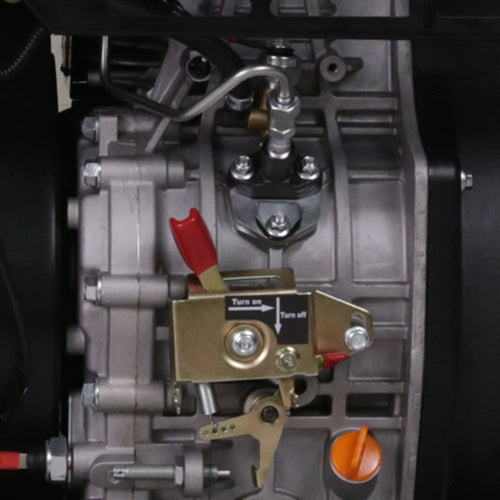

RELIABLE ENGINE
Branded reliable K&S engines are distinguished by increased wear resistance, long and stable operation, and meet all European quality standards, including EURO 5.

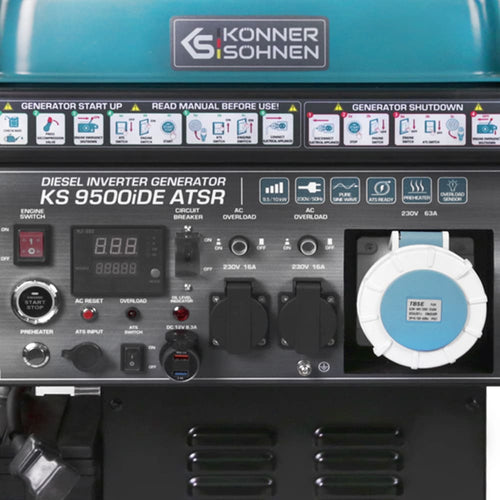

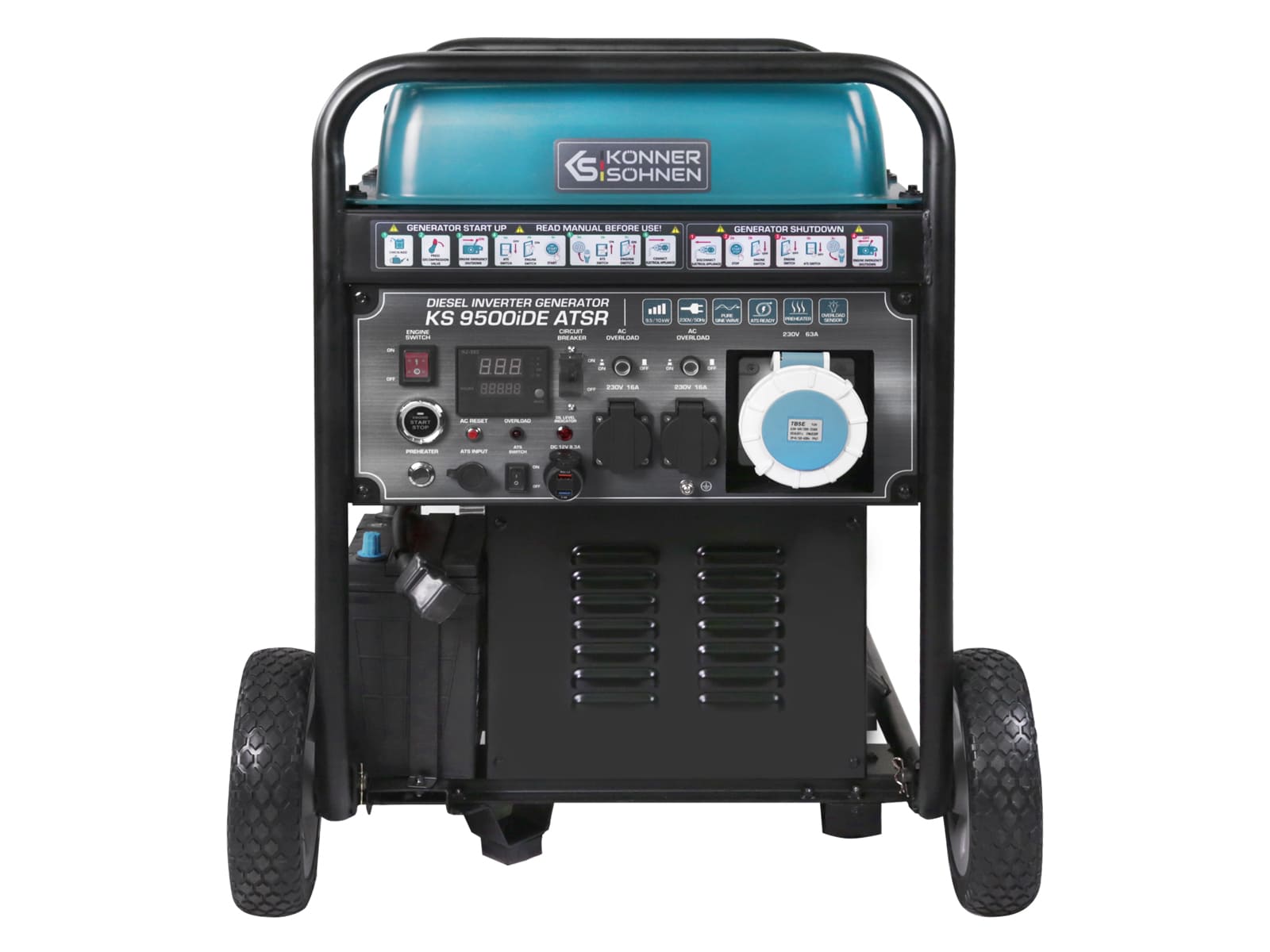

ERGONOMICAL CONTROL PANEL
Convenient arrangement of all functions: LED display (voltage, frequency, current, output power, hours counter), generator set status indicators that show the operating status, overload or short circuit protection, low oil level, “Reset button” to reset the control system and restore voltage supply, universal 12V 8.3A car socket.

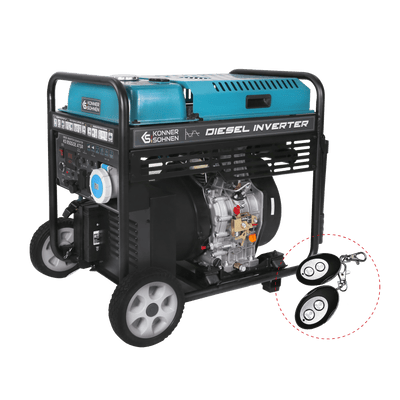

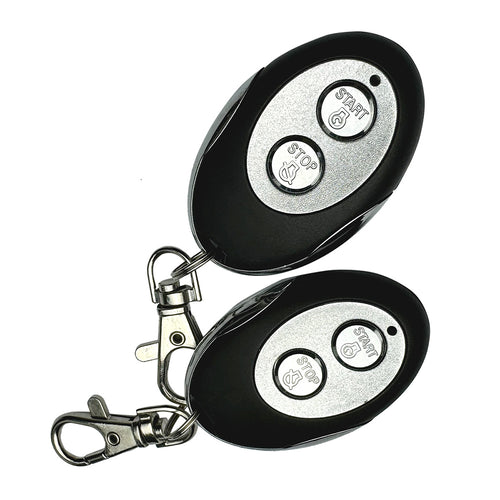

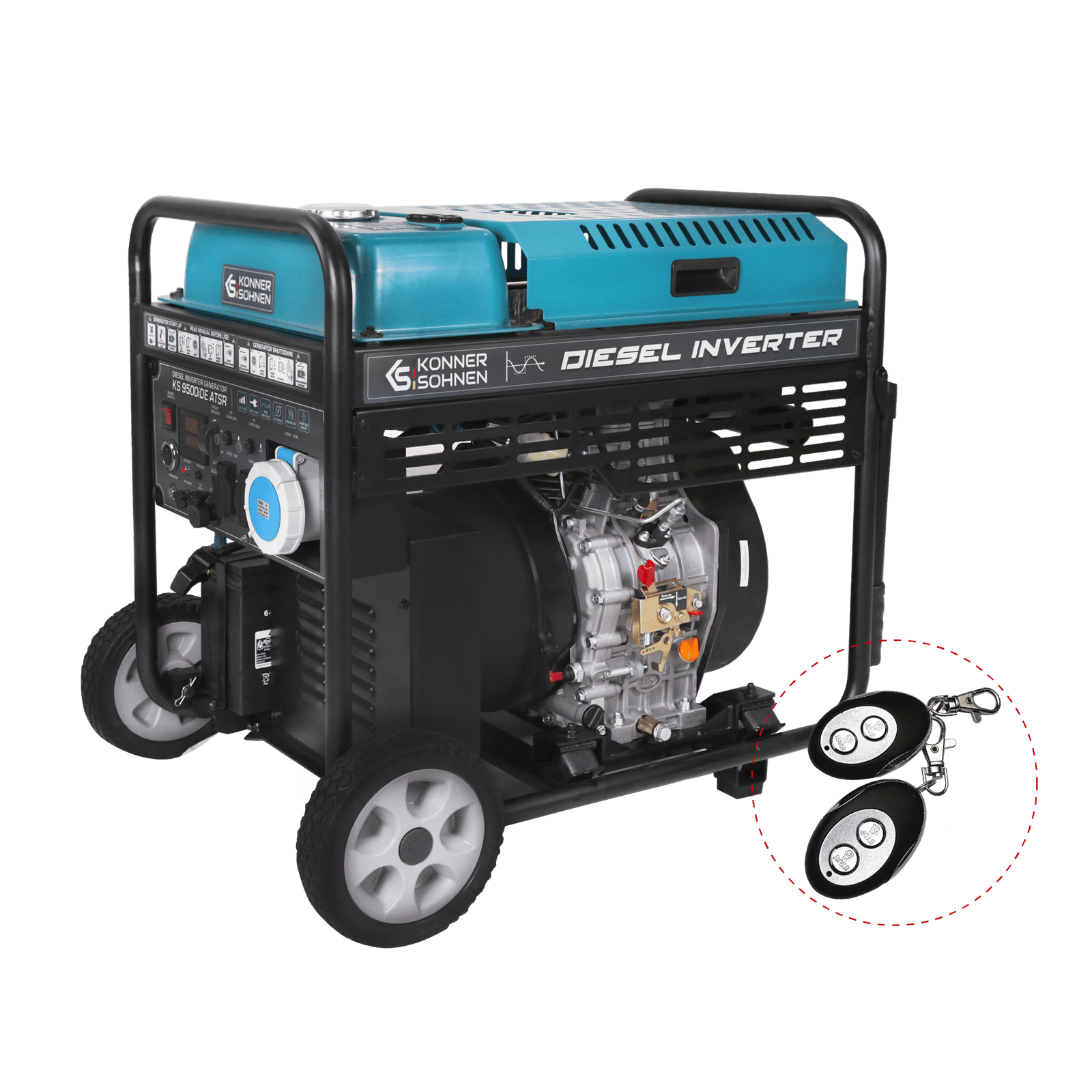

REMOTE CONTROL
The KS 9500iDE ATSR generator features remote control capability from a distance of 50 meters using a remote control. The remote has two buttons: START and STOP. Remote control makes these generators even more convenient to use, as there is no need to physically walk to the generator to turn it on or off. Each generator comes with two remotes.
Pre-heating
The pre-start heating function enables quick and smooth generator startup even at low temperatures. This is particularly relevant in winter when diesel fuel can thicken, making engine starts more difficult.

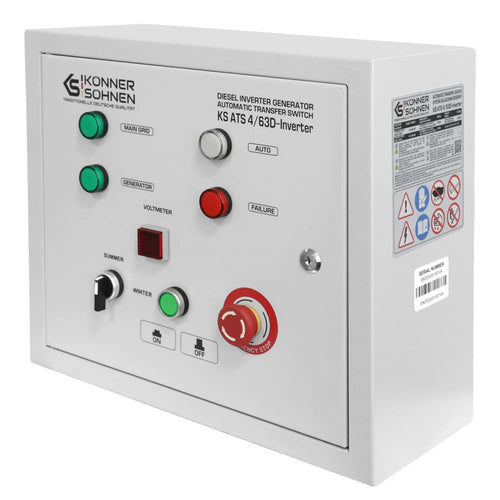

CAPABILITY TO CONNECT ATS
It features the capability to connect an ATS (automatic transfer switch) system. The unit automatically starts the generator and switches the load to it when the main power source is disconnected, and it automatically stops the generator when the main power supply is restored. This is especially important at night or in cold weather, when it’s dangerous or inconvenient to go outside to start the generator.

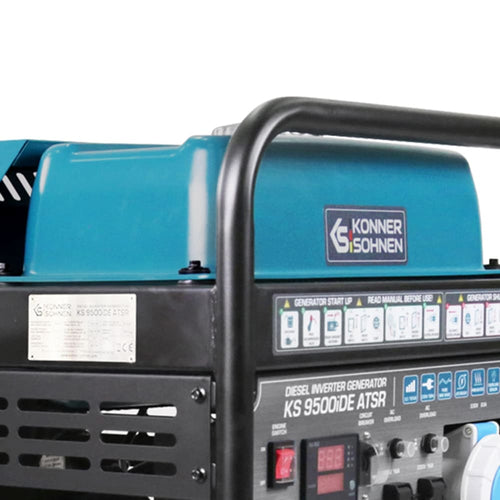

18 LITER FUEL TANK
The 18-liter fuel tank enables the generator to operate for an extended period without refueling, providing sufficient time to power devices during a power outage. There’s no need to refuel the generator frequently, saving time and enabling you to focus on other tasks. The tank features a fuel level indicator, which shows how much fuel remains. This helps ensure timely refueling and avoids sudden shutdowns due to a lack of fuel.

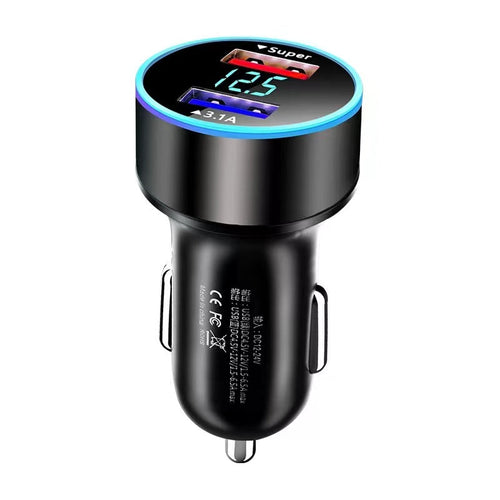

12V adapter with USB output
The universal car socket provides power for a wide range of 12V-compatible devices that do not have their own batteries, including refrigerators, pumps, car vacuum cleaners, and other appliances. Using the included 12V adapter with USB outputs, you can easily charge your phone, tablet, camera, headphones, and other electronic gadgets.

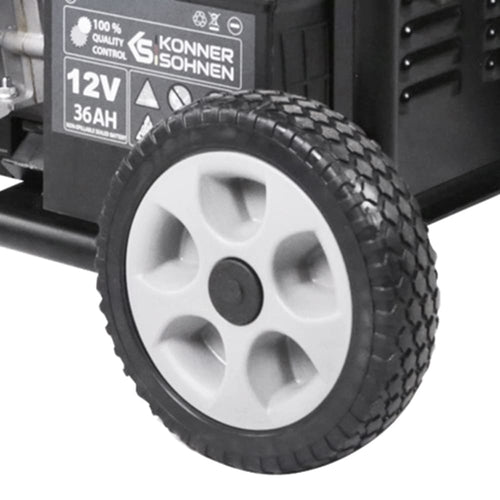

TRANSPORTATION KIT
Two wheels and lifting handles make the generator more manoeuvrable, so you can easily move it over uneven surfaces, stairs or over obstacles. There is no need to lift the generator to move it, which significantly reduces the strain on your back. In addition, the transport kit lifts the generator off the ground, protecting its casing from damage.

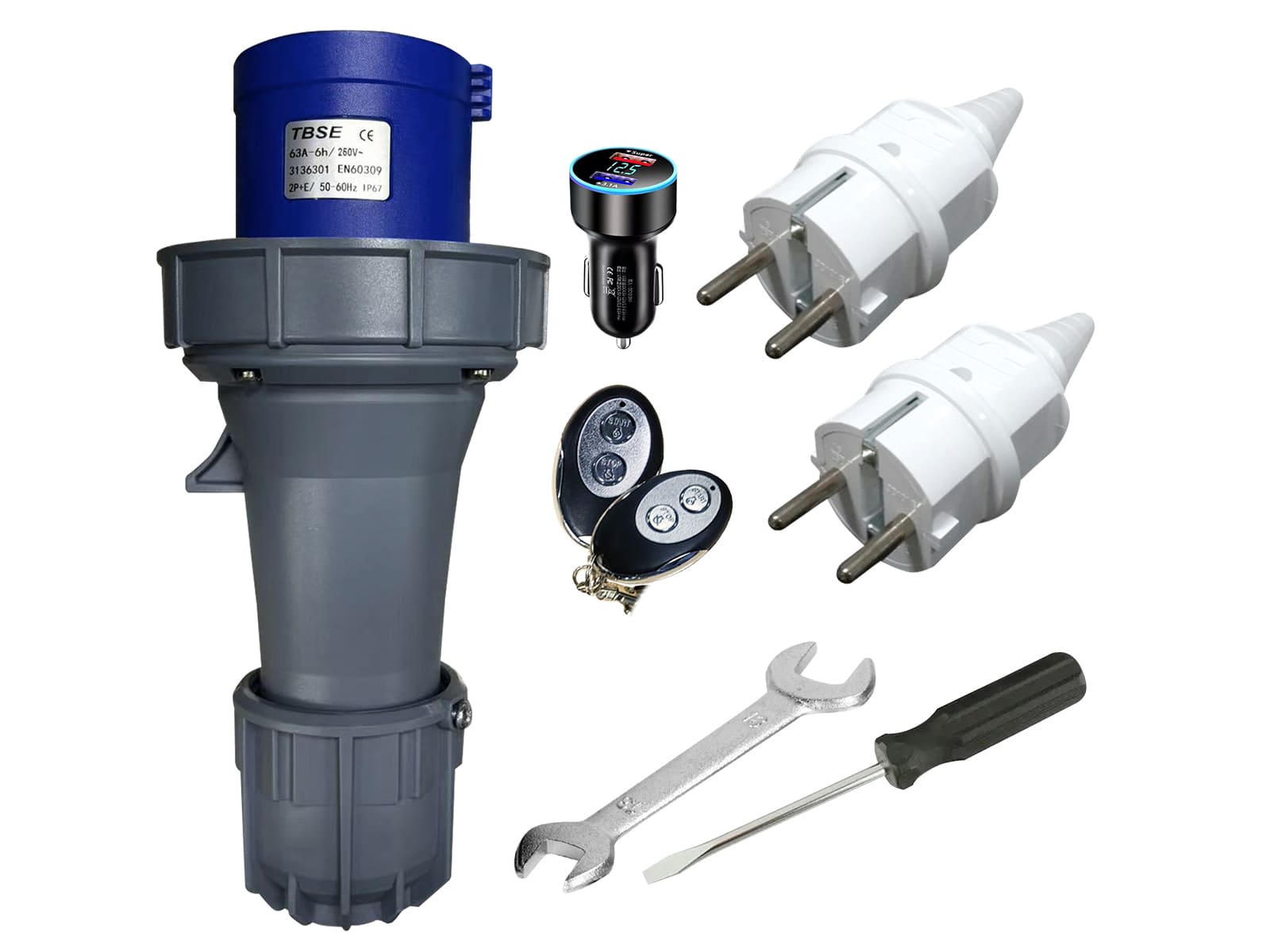

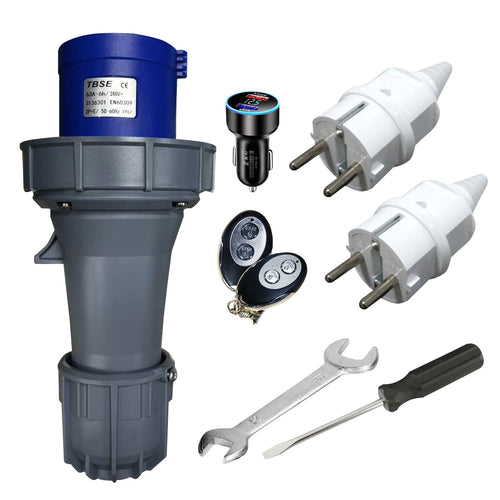

PACKAGE INCLUDES
Packaging,
Generator,
User manual,
16A Plugs,
63A Plug,
Wheels,
Wheel axles,
Locking clamps,
Washers,
Handle,
Anti-vibration feet,
12V Adapter to USB,
Remote control
Generator,
User manual,
16A Plugs,
63A Plug,
Wheels,
Wheel axles,
Locking clamps,
Washers,
Handle,
Anti-vibration feet,
12V Adapter to USB,
Remote control
Specification
Diesel inverter generator KS 9500iDЕ ATSR
| Voltage, V | 230 |
| Max/Nominal power (230V), kW | 10.0/9.5 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50 |
| Current (max), A | 43.5 |
| Outlets | 2 x Schuko 230 V, 1 x CEE 230 V 63 A |
| Runtime at 50% load, h*** | 14 |
| LED display | multifunctional: voltage, frequency, current, power output, hours counter |
| Noise level Lpa (7m)/Lwa, dB | 72/97 |
| Power output DC, V/А | 8.3A |
| Engine type | 1-cylinder diesel, 4-stroke, air-cooled |
| Engine model | KS 790iD |
| Engine power, hp/kW | 17.7/13 |
| Preheater | + |
| Fuel tank volume, l | 18 |
| Crank case volume, l | 1.8 |
| Engine cylinder volume, cm3 | 762 |
| Engine start | Electric |
| Frame diameter | 28 mm, round |
| Accumulator (A·h) | 36 |
| Output for ATS | + |
| Includes | Generator, Packaging, Manual, 2×16A Plugs, 63A Plug, Wheels, Wheel axles, Locking clamps, Washers, Handle, Anti-vibration feet, 12V Adapter to USB, Remote control |
| Net dimensions (LxWxH), mm | 770×542×722 |
| Gross dimensions (LxWxH), mm | 820×555×745 |
| Net weight, kg | 130 |
| Gross weight, kg | 137.0 |
| SKU | KS 9500IDE ATSR |
| Barcode | 4260405367474 |
Instructions

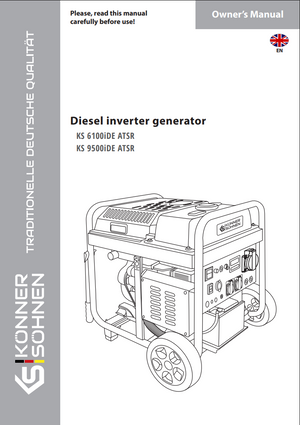

Diesel inverter generator KS 6100iDЕ ATSR, KS 9500iDЕ ATSR
