Charging station for electric vehicle KS P16/3
Dhs. 1,296.00
Dhs. 1,816.00
Charging station for electric vehicle KS P16/3
Dhs. 1,296.00
Dhs. 1,816.00
Charging station for electric vehicle KS P16/3
Unavailable
Dhs. 1,296.00
Dhs. 1,513.00
Specification
| Rated power, kW: | 11 |
| Rated voltage, V: | 400 |
| Rated current, A: | 16 |
| Cable length, m: | 5 |
| Number of phases: | 3 |
Specification
| Rated voltage, V | 400 |
| Cable length, m | 5 |
| Number of phases | 3 |
| Rated current, A | 16 |
| Recommended power supply cable (copper), mm2 | 5х4, 5х6 |
| Input terminals | L1/L2/L3/N/PE |
| Charging connector type | Type 2 |
| Rated power, kW | 11 |
| Protection class | IP65 |
| Net dimensions (LxWxH), mm | 180х180х65 |
| Gross dimensions (LxWxH), mm | 450x380x150 |
| Net weight, kg | 6 |
| Gross weight, kg | 6.0 |
| SKU | KS P16/3 |
| Barcode | 4260405366354 |
Benefits
Features

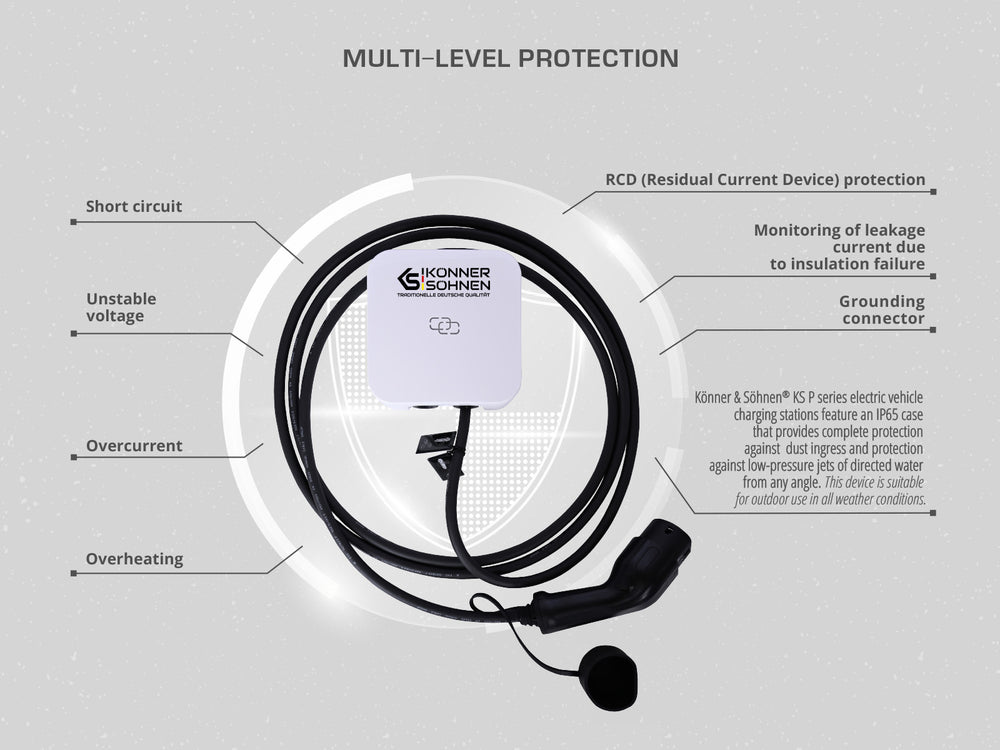

Fast and safe
The charging station is designed for fast charging of electric cars and has multi-level protection overheating, unstable voltage, overcurrent, short circuit, adverse weather conditions and dust. Features: grounding connector, monitoring of leakage current due to insulation failure, fault monitoring, IP65 protection class.
Unlike the charging controllers that are plugged into a regular power outlet, the charging station allows charging electric car batteries with a higher capacity.

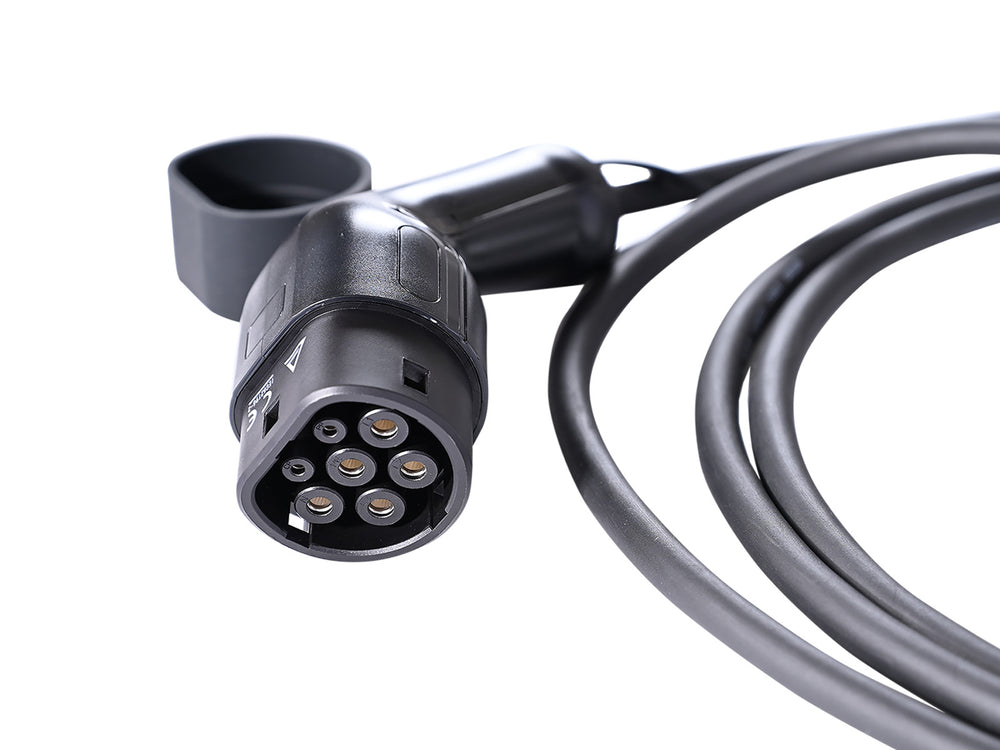

Ev charging plug type 2
The charging station is equipped with a DIN IEC 62196-2 Type 2 connector suitable for most electric vehicles. The 5 m long charging cable provides multiple parking options.
Rfid card reader for protection against electricity theft
Only the RFID card holder can use the RFID card reader to initiate charging. Two RFID cards are included. With the RFID cards and Card Management mode, your charging station is reliably protected from unauthorized use.
We e-charge app
The app is available for iOS and Android OS users and includes features such as remote charging enable/disable, charging status monitoring, energy demand control, and reporting of the charging station's electricity consumption. It supports 10 languages.
Charging control button with led indicator
The rugged case is made of high-grade materials, has a control button. Light indicators on the front panel notify about power, standby mode (green light), charging mode (blue light) and possible errors.
Enclosure with the highest degree of protection
Könner & Söhnen® KS P series electric vehicle charging stations feature an IP65 case that provides complete protection against dust ingress and protection against low-pressure jets of directed water from any angle. This device is suitable for outdoor use in all weather conditions.
Cable holder and charging connector holder included
A cable holder and charging connector holder are included in a charging station set, which allows you to protect the charging plug from damage in standby mode.
Specification
Charging station for electric vehicle KS P16/3
| Rated voltage, V | 400 |
| Cable length, m | 5 |
| Number of phases | 3 |
| Rated current, A | 16 |
| Recommended power supply cable (copper), mm2 | 5х4, 5х6 |
| Input terminals | L1/L2/L3/N/PE |
| Charging connector type | Type 2 |
| Rated power, kW | 11 |
| Protection class | IP65 |
| Net dimensions (LxWxH), mm | 180х180х65 |
| Gross dimensions (LxWxH), mm | 450x380x150 |
| Net weight, kg | 6 |
| Gross weight, kg | 6.0 |
| SKU | KS P16/3 |
| Barcode | 4260405366354 |
