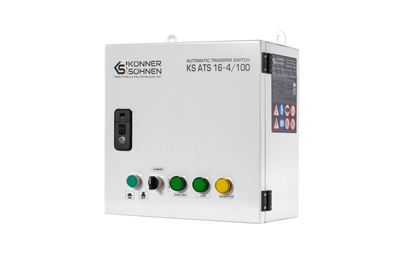

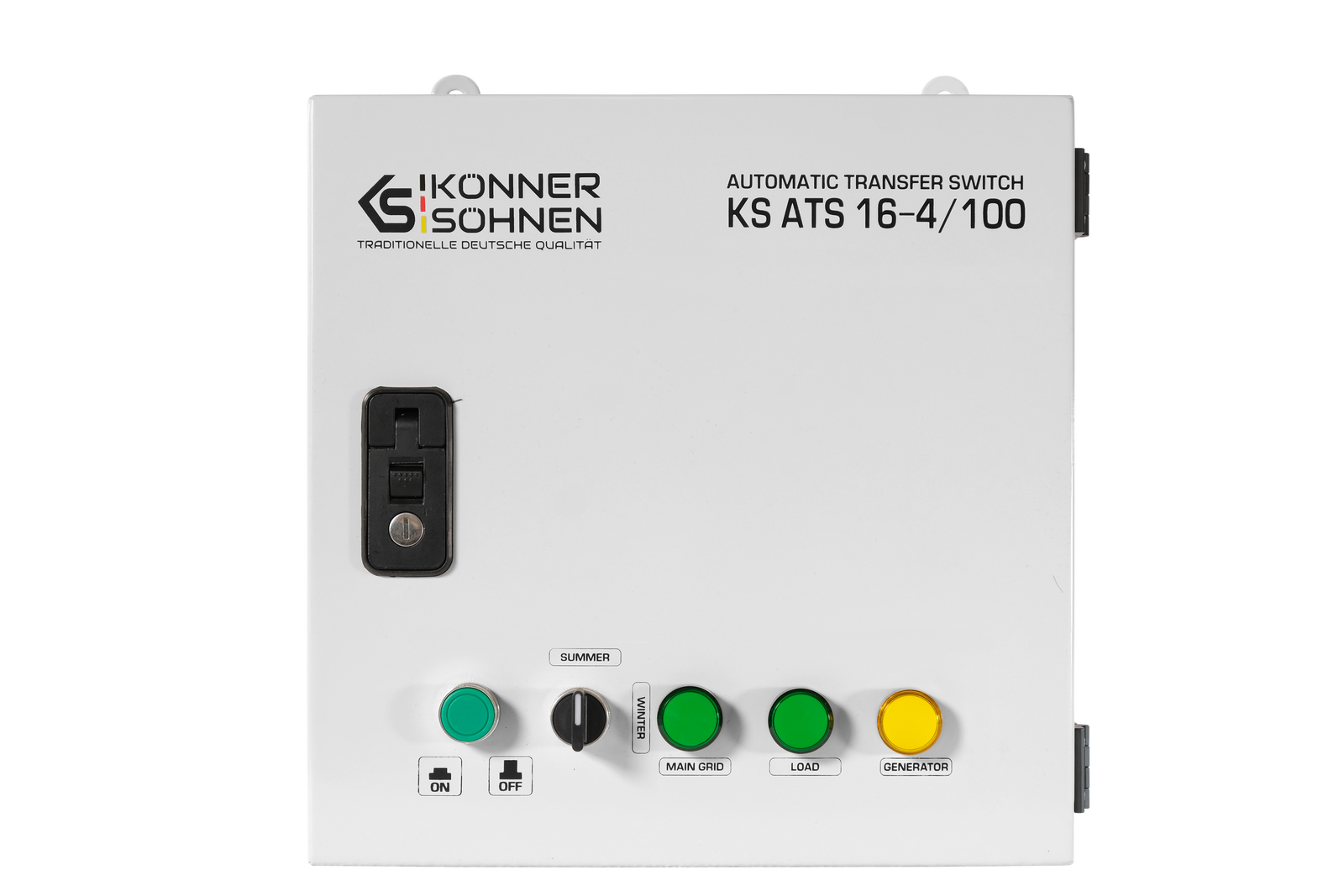

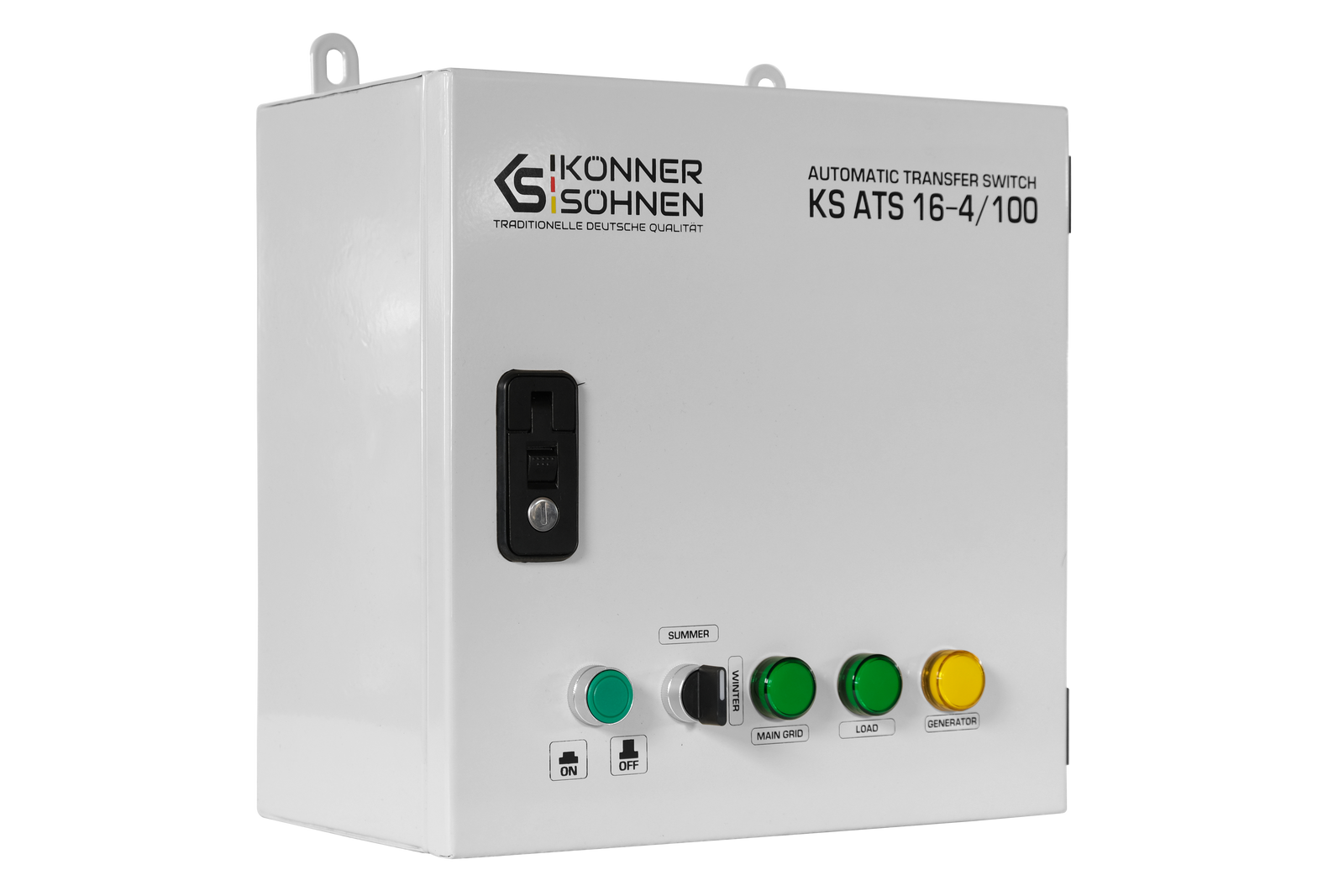

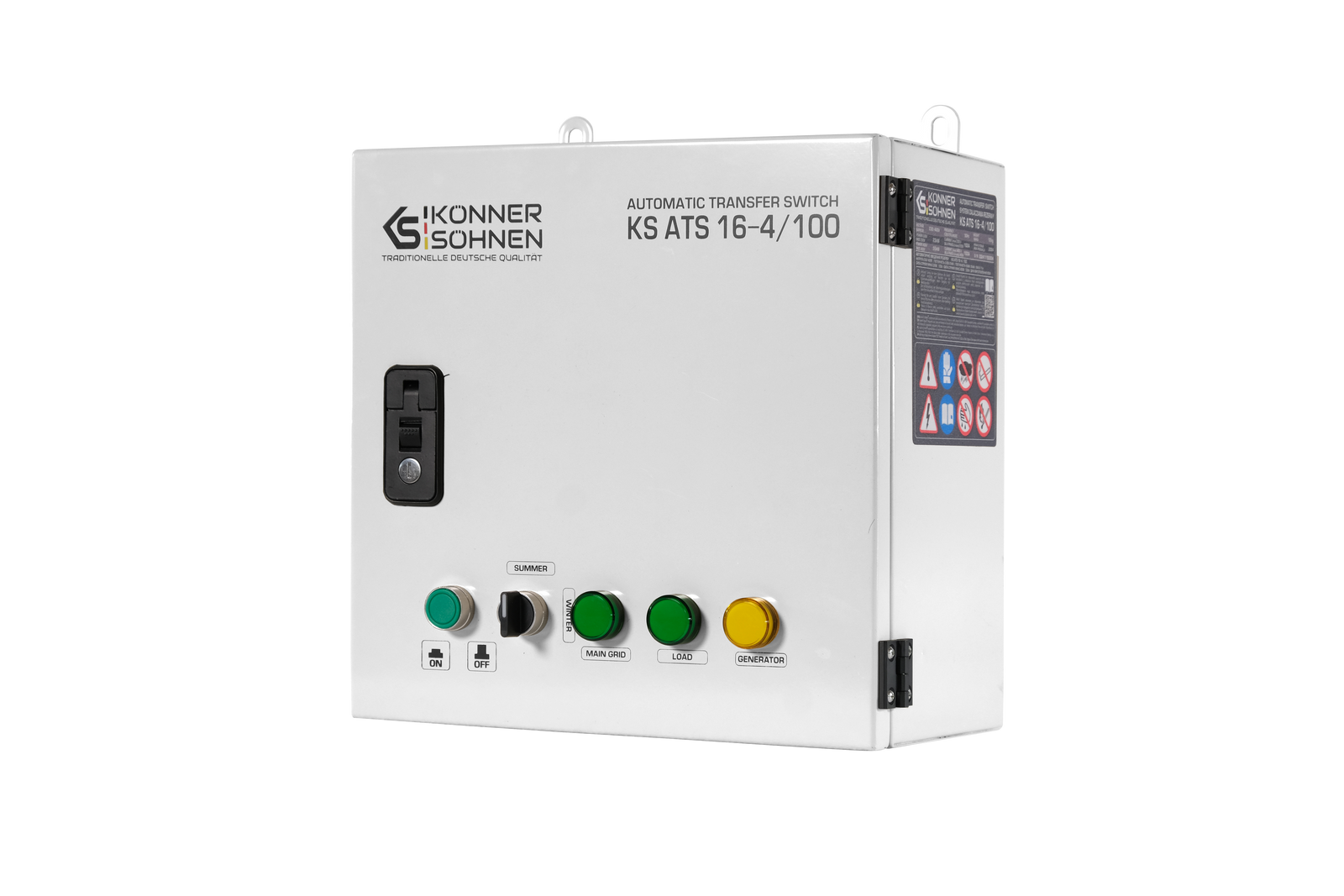

Automatic Transfer Switch KS ATS 16-4/100
Dhs. 1,898.00
Automatic Transfer Switch KS ATS 16-4/100
Dhs. 1,898.00
Automatic Transfer Switch KS ATS 16-4/100
Unavailable
Dhs. 1,898.00
Specification
| Frequency, Hz: | 50 |
| Working environment: | from -50 to + 45 °С; humidity: ⩽50% |
| Voltage, V: | 230/400 |
Specification
| Peak power demand, W | 15 |
| Power (230V), kW | 23 |
| Current (max) 230 V, A | 100 |
| Power 400V, kW | 55 |
| Current (max) 400 V, A | 100 |
| Working environment | from -50 to + 45 °С; humidity: ⩽50% |
| Storage environment | from -30°C to +70°C; humidity: ⩽50% |
| Insulation class | AC1.0KV/1min 1mA |
| Control cable length, m | 10 |
| Voltage, V | 230/400 |
| IP protection class | IP44 |
| Net dimensions (LxWxH), mm | 350x382x192 |
| Net weight, kg | 12 |
| SKU | KS ATS 16-4/100 |
| Barcode | 4260405368358 |
Features
Specification
Automatic Transfer Switch KS ATS 16-4/100
| Peak power demand, W | 15 |
| Power (230V), kW | 23 |
| Current (max) 230 V, A | 100 |
| Power 400V, kW | 55 |
| Current (max) 400 V, A | 100 |
| Working environment | from -50 to + 45 °С; humidity: ⩽50% |
| Storage environment | from -30°C to +70°C; humidity: ⩽50% |
| Insulation class | AC1.0KV/1min 1mA |
| Control cable length, m | 10 |
| Voltage, V | 230/400 |
| IP protection class | IP44 |
| Net dimensions (LxWxH), mm | 350x382x192 |
| Net weight, kg | 12 |
| SKU | KS ATS 16-4/100 |
| Barcode | 4260405368358 |

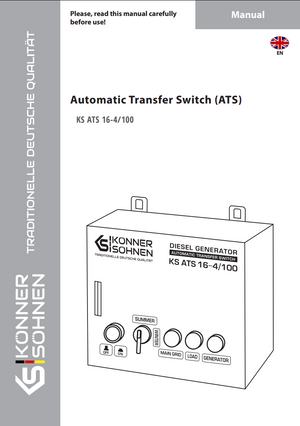

Instructions
Könner & Söhnen Energy
Download instruction PDF: Könner & Söhnen Energy
